ADA4853-3WYCPZ-R7 - Analog Devices

Description: Video Amp Triple 5V Automotive 16-Pin LFCSP EP T/R

Download ADA4853-3WYCPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

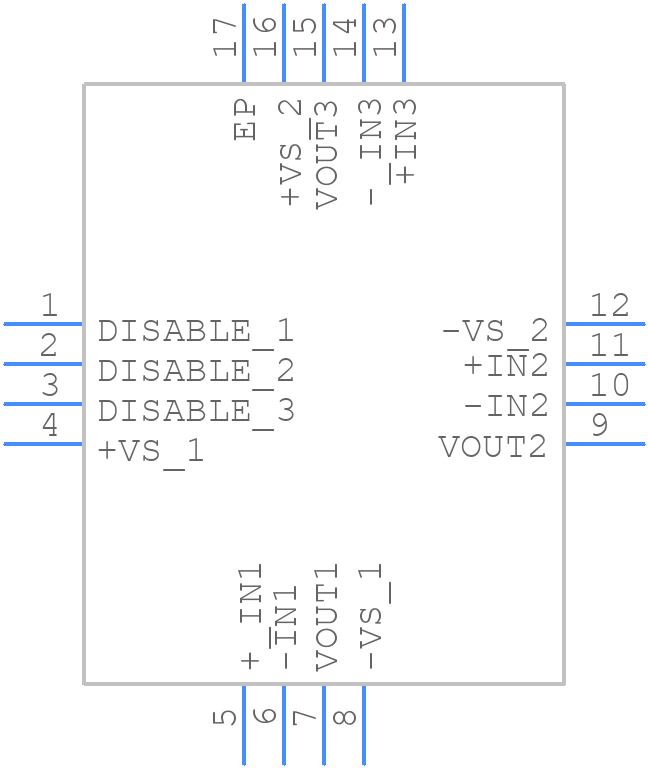

ADA4853-3WYCPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4853-3WYCPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-16-27)
click to zoom
3D Models
ADA4853-3WYCPZ-R7 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-16-27)
click to zoom

ADA4853-3WYCPZ-R7 Details

  • Manufacturer Part Number:

    ADA4853-3WYCPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-3

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    1.7 µA

  • Bias Current-Max (IIB) @25C:

    1.7 µA

  • Common-mode Reject Ratio-Min:

    69 dB

  • Common-mode Reject Ratio-Nom:

    66 dB

  • Frequency Compensation:

    NO

  • Input Offset Voltage-Max:

    6000 µV

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    3

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    YES

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Min:

    88 V/us

  • Slew Rate-Nom:

    100 V/us

  • Supply Current-Max:

    1.6 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Min:

    2818.38

  • Wideband:

    YES

  • Width:

    3 mm

ADA4853-3WYCPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4853-3WYCPZ-R7 should include a solid ground plane, separate analog and digital power planes, and minimize trace lengths and loops. Additionally, it's recommended to place the device close to the analog signal sources and use shielding to reduce electromagnetic interference (EMI).
  • To ensure the ADA4853-3WYCPZ-R7 operates within the specified temperature range of -40°C to 125°C, it's essential to provide adequate heat sinking, avoid overheating, and use a thermally conductive material for the PCB. Additionally, consider using thermal interface materials and heat sinks to dissipate heat effectively.
  • Not using the recommended bypass capacitors can lead to instability, oscillations, and reduced performance. The bypass capacitors help to filter out noise and provide a stable power supply to the device. Omitting them can cause the device to malfunction or fail to meet its specifications.
  • To troubleshoot oscillations or instability issues with the ADA4853-3WYCPZ-R7, start by checking the PCB layout, power supply, and grounding. Ensure that the device is properly decoupled, and the power supply is clean and stable. Use an oscilloscope to analyze the output signal and identify any signs of oscillation. Consult the datasheet and application notes for guidance on troubleshooting and optimization techniques.
  • Exceeding the maximum input voltage of the ADA4853-3WYCPZ-R7 can cause permanent damage to the device. The maximum input voltage is specified as 6 V, and exceeding this limit can lead to latch-up, overheating, or even device failure. Ensure that the input voltage is within the specified range to maintain device reliability and performance.
