ADA4857-1YCPZ-R7 - Analog Devices

Description: High speed 850 MHz, −3 dB bandwidth (G = +1, RL = 1 kΩ, LFCSP) 750 MHz, −3 dB bandwidth (G = +1, RL = 1 kΩ, SOIC) 2800 V/μs slew rate Low distortion: −88 dBc at 10 MHz (G = +1, RL = 1 kΩ) Low power: 5 mA/amplifier at 10 V Low noise: 4.4 nV/√Hz Wide supply voltage range: 5 V to 10 V Power-down feature Available in 3 mm × 3 mm 8-lead LFCSP (single), 8-lead SOIC (single), and 4 mm × 4 mm 16-lead LFCSP (dual)

Download ADA4857-1YCPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

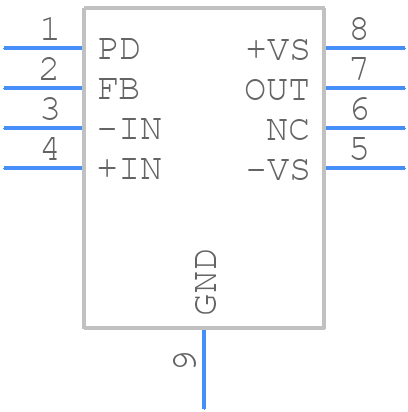

ADA4857-1YCPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4857-1YCPZ-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Lead Lead Frame Chip Scale Package [LFCSP_WD] 3 mm × 3 mm Body, Very Very Thin, Dual Lead (CP-8-13)
click to zoom
3D Models
ADA4857-1YCPZ-R7 - Analog Devices - 3D model - Small Outline No-lead - 8-Lead Lead Frame Chip Scale Package [LFCSP_WD] 3 mm × 3 mm Body, Very Very Thin, Dual Lead (CP-8-13)
click to zoom

ADA4857-1YCPZ-R7 Details

  • Manufacturer Part Number:

    ADA4857-1YCPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-13

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    3.3 µA

  • Bias Current-Max (IIB) @25C:

    3.3 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    86 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    4500 µV

  • JESD-30 Code:

    S-XQCC-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage Limit-Max:

    -5.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    SOLCC8,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Slew Rate-Min:

    0.7 V/us

  • Slew Rate-Nom:

    1 V/us

  • Supply Current-Max:

    5.5 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    850000

  • Voltage Gain-Min:

    50000

  • Wideband:

    YES

  • Width:

    3 mm

ADA4857-1YCPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4857-1YCPZ-R7 involves keeping the input and output traces short and symmetrical, using a solid ground plane, and minimizing the distance between the device and the decoupling capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source between 2.7V and 5.5V, and the GND pin to a solid ground plane. The VCC pin should be decoupled with a 10uF capacitor to GND, and the input pins should be biased to a voltage within the common-mode range.
  • The ADA4857-1YCPZ-R7 can drive capacitive loads up to 100pF. Exceeding this limit may cause instability or oscillations. If a larger capacitive load is required, consider adding a buffer stage or using a device with higher drive capability.
  • To minimize EMI, use a shielded enclosure, keep the device away from high-frequency sources, and use a low-pass filter or ferrite bead on the output. Additionally, ensure good PCB layout practices, such as keeping the signal traces short and away from the edge of the board.
  • The thermal resistance of the ADA4857-1YCPZ-R7 package is typically around 120°C/W. This means that for every watt of power dissipated, the junction temperature will rise by 120°C above the ambient temperature.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADA4857-1YCPZ-R7 Overview

Use the download button to access the ADA4857-1YCPZ-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADA48, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
