ADA4861-3YRZ-RL7 - Analog Devices

Description: High Speed, Low Cost, Triple Op-Amp

Download ADA4861-3YRZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

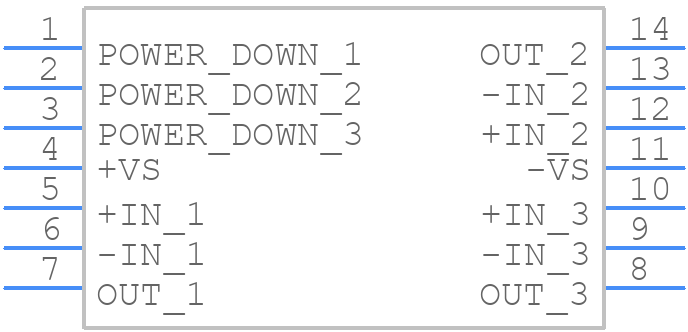

ADA4861-3YRZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4861-3YRZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-14
click to zoom
3D Models
ADA4861-3YRZ-RL7 - Analog Devices - 3D model - Small Outline Packages - R-14
click to zoom

ADA4861-3YRZ-RL7 Details

  • Manufacturer Part Number:

    ADA4861-3YRZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    R-14

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Common-mode Reject Ratio-Min:

    55 dB

  • Common-mode Reject Ratio-Nom:

    58 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    13000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -6.3 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    3

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    YES

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    910 V/us

  • Supply Current-Max:

    18.5 mA

  • Supply Voltage Limit-Max:

    6.3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Wideband:

    YES

  • Width:

    3.9 mm

ADA4861-3YRZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4861-3YRZ-RL7 involves keeping the input and output traces short and symmetrical, using a solid ground plane, and minimizing the distance between the device and the decoupling capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source, and decouple it with a 10uF capacitor to ground. The VEE pin should be connected to a stable voltage source or ground, depending on the application. The input common-mode voltage should be within the recommended range.
  • The maximum power dissipation of the ADA4861-3YRZ-RL7 is 670mW. However, this can be affected by the ambient temperature, PCB layout, and thermal management. It's essential to ensure proper thermal management to prevent overheating.
  • The ADA4861-3YRZ-RL7 is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to consider the thermal management and ensure the device is within its recommended operating temperature range.
  • Common issues with the ADA4861-3YRZ-RL7 include oscillations, distortion, and noise. To troubleshoot, check the PCB layout, decoupling, and power supply. Ensure the input and output impedances are matched, and the device is properly biased. Use an oscilloscope to analyze the output waveform and identify any anomalies.
