ADA4870ARRZ-RL - Analog Devices

ADA4870ARRZ-RL Details

• Manufacturer Part Number:

  ADA4870ARRZ-RL

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOIC

• Package Description:

  ROHS COMPLIANT, PLASTIC, MO-166AA, SOP-20

• Pin Count:

  20

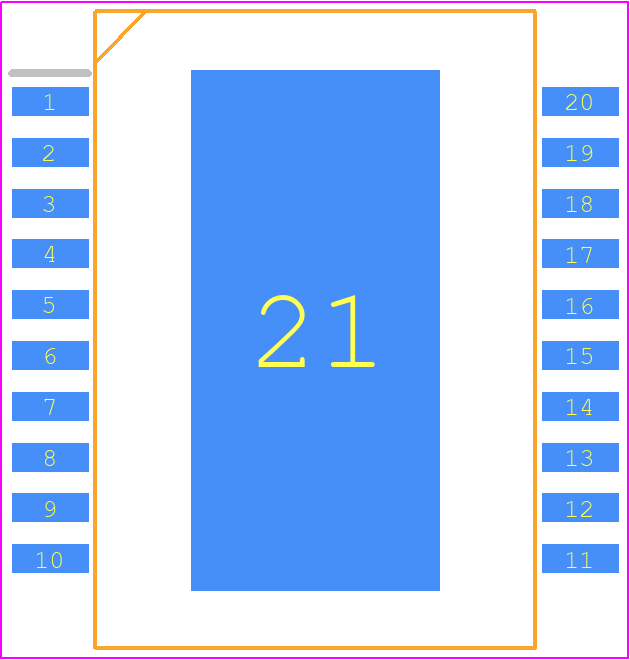

• Manufacturer Package Code:

  RR-20-1

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0

• Amplifier Type:

  OPERATIONAL AMPLIFIER

• Architecture:

  CURRENT-FEEDBACK

• Bias Current-Max (IIB) @25C:

  23 µA

• Common-mode Reject Ratio-Min:

  57 dB

• Common-mode Reject Ratio-Nom:

  59 dB

• Frequency Compensation:

  NO

• Input Offset Voltage-Max:

  5000 µV

• JESD-30 Code:

  R-PDSO-G20

• Length:

  15.9 mm

• Low-Bias:

  NO

• Low-Offset:

  NO

• Micropower:

  NO

• Moisture Sensitivity Level:

  3

• Neg Supply Voltage Limit-Max:

  -21 V

• Neg Supply Voltage-Nom (Vsup):

  -5 V

• Number of Functions:

  1

• Number of Terminals:

  20

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HSOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Power:

  NO

• Programmable Power:

  NO

• Seated Height-Max:

  3.6 mm

• Slew Rate-Nom:

  2500 V/us

• Supply Current-Max:

  33 mA

• Supply Voltage Limit-Max:

  21 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Wideband:

  YES

• Width:

  11 mm
