ADA4891-4ARZ - Analog Devices

Description: Low Cost CMOS, High Speed, Rail-to-Rail Amplifier (Quad)

Download ADA4891-4ARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

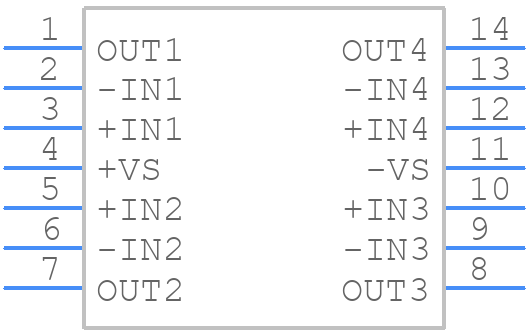

ADA4891-4ARZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4891-4ARZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-14 (SOIC)
click to zoom
3D Models
ADA4891-4ARZ - Analog Devices - 3D model - Small Outline Packages - R-14 (SOIC)
click to zoom

ADA4891-4ARZ Details

  • Manufacturer Part Number:

    ADA4891-4ARZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MS-012AB, SOIC-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    R-14

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.00005 µA

  • Bias Current-Max (IIB) @25C:

    0.00005 µA

  • Common-mode Reject Ratio-Nom:

    87 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    10000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    140 V/us

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    240000

  • Voltage Gain-Min:

    3980

  • Wideband:

    YES

  • Width:

    3.9 mm

ADA4891-4ARZ Frequently Asked Questions (FAQs)

  • To minimize noise and ensure optimal performance, it is recommended to follow good PCB layout practices, such as keeping the input and output traces separate, using a solid ground plane, and placing decoupling capacitors close to the op-amp. Additionally, it is recommended to use a low-impedance power supply and to minimize the length of the input traces.
  • To handle the ADA4891-4ARZ's high input bias current, it is recommended to use a low-impedance source, such as a voltage divider or a buffer amplifier, to drive the input. Additionally, it is recommended to use a high-impedance feedback network to minimize the effect of the input bias current on the circuit's performance.
  • The maximum power dissipation of the ADA4891-4ARZ is 670mW. To ensure that it doesn't overheat, it is recommended to provide adequate heat sinking, such as a thermal pad or a heat sink, and to ensure good airflow around the device. Additionally, it is recommended to operate the device within its recommended operating conditions and to avoid excessive power dissipation.
  • To ensure that the ADA4891-4ARZ is stable and doesn't oscillate, it is recommended to follow good compensation techniques, such as using a compensation capacitor and a series resistor in the feedback network. Additionally, it is recommended to ensure that the circuit's gain and phase margins are sufficient to prevent oscillation.
  • The recommended input common-mode voltage range for the ADA4891-4ARZ is between VSS-0.5V and VDD+0.5V. To ensure that it is within the recommended range, it is recommended to use a voltage divider or a level-shifting circuit to adjust the input common-mode voltage to within the recommended range.
