ADA4896-2ACPZ-R7 - Analog Devices

Description: 1 nV/√Hz, Low Power, Rail-to-Rail Output Amplifiers

Download ADA4896-2ACPZ-R7 Model

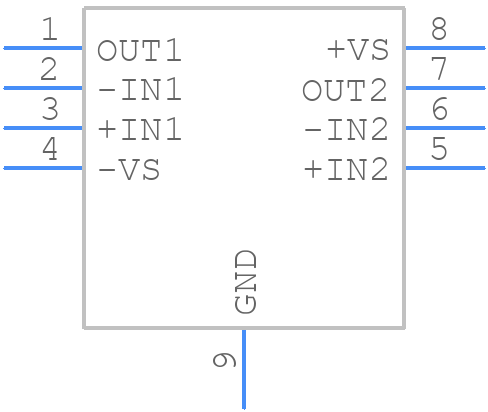

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADA4896-2ACPZ-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-8-11_2025
click to zoom

ADA4896-2ACPZ-R7 Details

  • Manufacturer Part Number:

    ADA4896-2ACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, MO-229WEED, LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-11

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    4 µA

  • Bias Current-Max (IIB) @25C:

    4 µA

  • Common-mode Reject Ratio-Min:

    92 dB

  • Common-mode Reject Ratio-Nom:

    120 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    500 µV

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage Limit-Max:

    -5.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.85 mm

  • Slew Rate-Nom:

    120 V/us

  • Supply Current-Max:

    6.4 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    230000

  • Voltage Gain-Min:

    56200

  • Wideband:

    YES

  • Width:

    3 mm

ADA4896-2ACPZ-R7 Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the ADA4896-2ACPZ-R7 is 670mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 125°C/W.
  • To ensure stability, it's recommended to use a compensation capacitor (CC) between pins 1 and 8, with a value of 10pF to 100pF, depending on the gain and frequency of operation. Additionally, a resistor (RF) in series with the feedback resistor (RG) can help improve stability.
  • To minimize noise and EMI, it's recommended to use a star-ground configuration, with the op-amp's ground pin connected to a central ground point. Keep the input and output traces short and away from noise sources, and use a ground plane to shield the circuit. Additionally, use decoupling capacitors (e.g., 100nF) between the power pins and ground to reduce noise.
  • Yes, the ADA4896-2ACPZ-R7 can be used in a single-supply configuration. However, the input common-mode voltage range is limited to VCC-1.5V to VCC+0.5V, so ensure that the input signal is within this range. Additionally, the output voltage swing will be reduced in single-supply operation.
  • The ADA4896-2ACPZ-R7 has a relatively high input bias current (up to 10μA) and offset voltage (up to 2mV). To minimize the impact of these, use a high-impedance input source, and consider using a voltage follower or a buffer stage to reduce the input impedance. Additionally, use a low-impedance output stage to minimize the effect of output impedance on the overall gain.
