ADA4922-1ACPZ-RL7 - Analog Devices

Description: Single-ended-to-differential conversion Low distortion (VO, dm = 40 V p-p) −99 dBc HD at 100 kHz Low differential output referred noise: 12 nV/√Hz High input impedance: 11 MΩ Fixed gain of 2 No external gain components required Low output-referred offset voltage: 1.1 mV maximum Low input bias current: 3.5 μA maximum Wide supply range 5 V to 26 V Can produce differential output signals in excess of 40 V p-p High speed 38 MHz, −3 dB bandwidth at 0.2 V p-p differential output Fast settling time

Download ADA4922-1ACPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

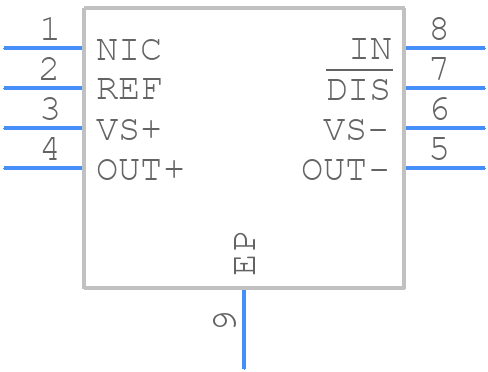

ADA4922-1ACPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4922-1ACPZ-RL7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - (CP-8-13)
click to zoom
3D Models
ADA4922-1ACPZ-RL7 - Analog Devices - 3D model - Small Outline No-lead - (CP-8-13)
click to zoom

ADA4922-1ACPZ-RL7 Details

  • Manufacturer Part Number:

    ADA4922-1ACPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Package Description:

    3 X 3 MM, LEAD FREE, LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-13

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    3.5 µA

  • Bias Current-Max (IIB) @25C:

    3.5 µA

  • Frequency Compensation:

    YES

  • JESD-30 Code:

    S-XDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage Limit-Max:

    -13 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Slew Rate-Nom:

    220 V/us

  • Supply Current-Max:

    7.6 mA

  • Supply Voltage Limit-Max:

    13 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Wideband:

    YES

  • Width:

    3 mm

ADA4922-1ACPZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4922-1ACPZ-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To optimize the ADA4922-1ACPZ-RL7 for low noise performance, use a low-noise power supply, keep the input impedance low, and use a high-quality, low-noise reference voltage. Additionally, ensure that the PCB layout is optimized for low noise, and consider using shielding and filtering to reduce electromagnetic interference.
  • The ADA4922-1ACPZ-RL7 has an operating temperature range of -40°C to +125°C. However, it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • Yes, the ADA4922-1ACPZ-RL7 is suitable for use in high-reliability and aerospace applications. However, it's recommended to consult with Analog Devices Inc. for specific requirements and to ensure that the device meets the necessary qualifications and certifications for the specific application.
  • Common issues with the ADA4922-1ACPZ-RL7 include incorrect power supply voltage, incorrect reference voltage, and incorrect input signal amplitude. To troubleshoot, check the power supply voltage, reference voltage, and input signal amplitude, and ensure that they are within the recommended specifications. Additionally, check the PCB layout and ensure that it is optimized for low noise and minimal electromagnetic interference.
