ADA4930-1SCPZ-EPR2 - Analog Devices

Description: Differential Amplifiers UltraLow Dist Low Vltg ADC Driver

Download ADA4930-1SCPZ-EPR2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

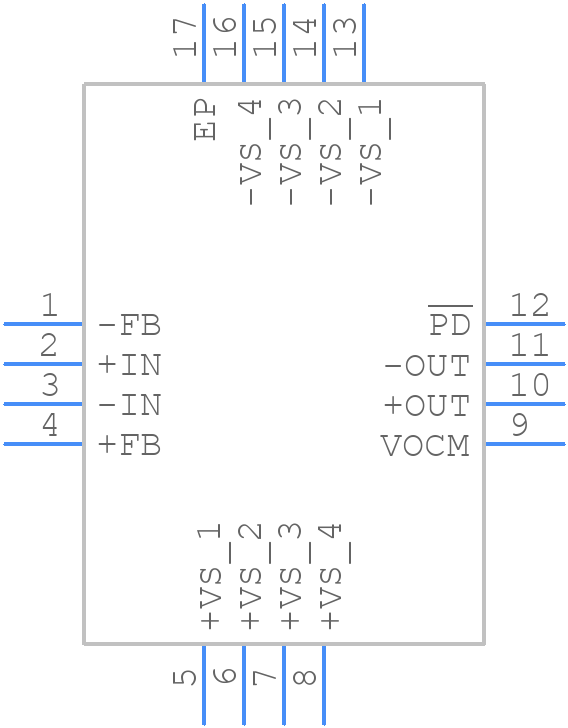

Symbol
ADA4930-1SCPZ-EPR2 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4930-1SCPZ-EPR2 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-21
click to zoom
3D Models
ADA4930-1SCPZ-EPR2 - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-21
click to zoom

ADA4930-1SCPZ-EPR2 Details

  • Manufacturer Part Number:

    ADA4930-1SCPZ-EPR2

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-35

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    36 µA

  • Bias Current-Max (IIB) @25C:

    -36 µA

  • Common-mode Reject Ratio-Min:

    77 dB

  • Common-mode Reject Ratio-Nom:

    82 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    3100 µV

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    3400 V/us

  • Supply Current-Max:

    40 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Wideband:

    NO

  • Width:

    3 mm

ADA4930-1SCPZ-EPR2 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4930-1SCPZ-EPR2 involves keeping the input and output traces short and symmetrical, using a solid ground plane, and minimizing the distance between the device and the analog power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground layer to reduce noise and interference.
  • To ensure the ADA4930-1SCPZ-EPR2 operates within its recommended operating conditions, verify that the supply voltage is within the range of 3.3V to 5.5V, the operating temperature is within the range of -40°C to 125°C, and the input signals are within the recommended common-mode and differential voltage ranges.
  • The recommended input termination for the ADA4930-1SCPZ-EPR2 is a 50Ω resistor in series with the input signal, followed by a 50Ω resistor to ground. This termination helps to match the input impedance of the device and reduce reflections.
  • To filter out noise and interference in the ADA4930-1SCPZ-EPR2 output, use a low-pass filter with a cutoff frequency below the Nyquist frequency of the ADC. A simple RC filter or a more complex active filter can be used, depending on the specific application requirements.
  • The recommended output load for the ADA4930-1SCPZ-EPR2 is a minimum of 1kΩ in parallel with a maximum of 100pF. This load ensures that the output stage of the device can drive the load without compromising its performance.
