ADA4930-2YCPZ-R2 - Analog Devices

Description: ANALOG DEVICES - ADA4930-2YCPZ-R2 - Differential Amplifier, Ultralow Noise Driver, 2 Amplifiers, 3.1 V, 64 dB, 1.35 GHz, -40 °C, 105 °C

Download ADA4930-2YCPZ-R2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

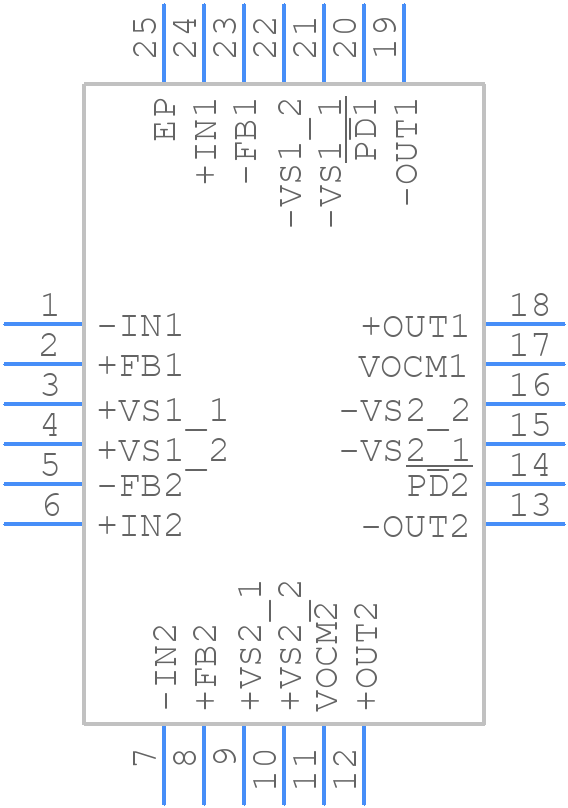

ADA4930-2YCPZ-R2 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4930-2YCPZ-R2 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-24-14)
click to zoom
3D Models
ADA4930-2YCPZ-R2 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-24-14)
click to zoom

ADA4930-2YCPZ-R2 Details

  • Manufacturer Part Number:

    ADA4930-2YCPZ-R2

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-14

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    36 µA

  • Bias Current-Max (IIB) @25C:

    -36 µA

  • Common-mode Reject Ratio-Nom:

    82 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    3100 µV

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    2877 V/us

  • Supply Current-Max:

    80 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Wideband:

    NO

  • Width:

    4 mm

ADA4930-2YCPZ-R2 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4930-2YCPZ-R2 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and ensure optimal performance.
  • To optimize the ADA4930-2YCPZ-R2's performance for high-frequency applications, it's recommended to use a low-ESR capacitor for the power supply decoupling, minimize the PCB trace lengths, and use a high-frequency-compatible layout. Additionally, the device's input and output impedance should be matched to the transmission line impedance to minimize reflections and ensure optimal signal integrity.
  • The recommended power-up sequence for the ADA4930-2YCPZ-R2 is to first apply the analog power supply (VCC) and then the digital power supply (VDD). This ensures that the device's internal circuitry is properly initialized and prevents latch-up or damage.
  • To ensure the ADA4930-2YCPZ-R2's output is properly terminated, it's recommended to use a 50-ohm termination resistor in series with the output pin, and a 50-ohm load impedance. This ensures that the output signal is properly matched to the transmission line impedance and minimizes reflections.
  • The ADA4930-2YCPZ-R2 has a human body model (HBM) ESD rating of 2 kV and a charged device model (CDM) ESD rating of 500 V. To protect the device from ESD damage, it's recommended to use ESD protection devices such as TVS diodes or ESD protection arrays, and to follow proper ESD handling and storage procedures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADA4930-2YCPZ-R2 Overview

Use the download button to access the ADA4930-2YCPZ-R2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADA49, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
