ADA4940-1ARZ - Analog Devices

Description: Differential ADC Driver Low Power SOIC8 Analog Devices ADA4940-1ARZ, Differential ADC Driver 3 → 6 V 260MHz 8-Pin SOIC

Download ADA4940-1ARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

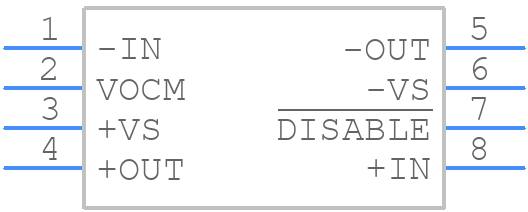

ADA4940-1ARZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4940-1ARZ - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - R-8
click to zoom
3D Models
ADA4940-1ARZ - Analog Devices - 3D model - SOT23 (8-Pin) - R-8
click to zoom

ADA4940-1ARZ Details

  • Manufacturer Part Number:

    ADA4940-1ARZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    1.6 µA

  • Bias Current-Max (IIB) @25C:

    3.5 µA

  • Common-mode Reject Ratio-Min:

    86 dB

  • Common-mode Reject Ratio-Nom:

    119 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    350 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    YES

  • Programmable Power:

    YES

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    95 V/us

  • Supply Current-Max:

    1.38 mA

  • Supply Voltage Limit-Max:

    8 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Min:

    0.99

  • Wideband:

    YES

  • Width:

    3.9 mm

ADA4940-1ARZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4940-1ARZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • To optimize the ADA4940-1ARZ's performance for high-frequency applications, use a low-ESR capacitor (e.g., 100nF) for power supply decoupling, and ensure that the input and output traces are as short as possible. Additionally, use a common-mode choke or a ferrite bead to filter out high-frequency noise.
  • The maximum allowable input voltage for the ADA4940-1ARZ is 6V. To protect the device from overvoltage, use a voltage clamp or a transient voltage suppressor (TVS) diode to limit the input voltage to within the recommended range.
  • To ensure the ADA4940-1ARZ's output is stable and free from oscillations, use a compensation capacitor (e.g., 10nF) between the output and the inverting input, and ensure that the output impedance is low enough to drive the load. Additionally, use a low-ESR capacitor for power supply decoupling.
  • The recommended operating temperature range for the ADA4940-1ARZ is -40°C to 125°C. Temperature affects the device's performance by changing its gain, bandwidth, and noise floor. As temperature increases, the device's gain and bandwidth decrease, while the noise floor increases.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADA4940-1ARZ Overview

Use the download button to access the ADA4940-1ARZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADA49, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
