ADA4940-2ACPZ-RL - Analog Devices

Description: Differential Amplifiers Sub 10M W ADC Driver for PULSAR Family

Download ADA4940-2ACPZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

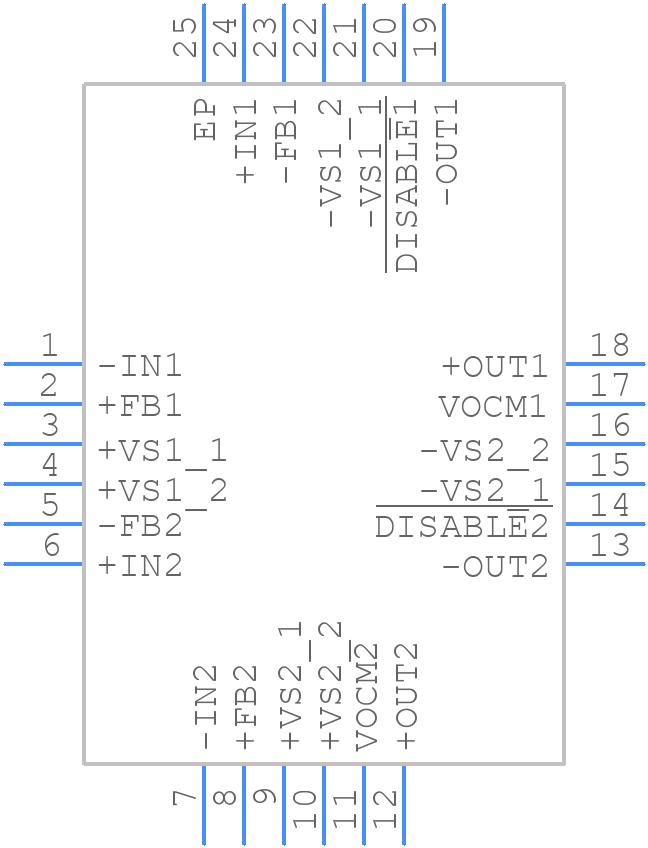

Symbol
ADA4940-2ACPZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4940-2ACPZ-RL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-24-7 (LFCSP)
click to zoom
3D Models
ADA4940-2ACPZ-RL - Analog Devices - 3D model - Quad Flat No-Lead - CP-24-7 (LFCSP)
click to zoom

ADA4940-2ACPZ-RL Details

  • Manufacturer Part Number:

    ADA4940-2ACPZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-7

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    1.6 µA

  • Bias Current-Max (IIB) @25C:

    3.5 µA

  • Common-mode Reject Ratio-Min:

    86 dB

  • Common-mode Reject Ratio-Nom:

    119 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    350 µV

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    YES

  • Programmable Power:

    YES

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Slew Rate-Nom:

    95 V/us

  • Supply Current-Max:

    1.38 mA

  • Supply Voltage Limit-Max:

    8 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Voltage Gain-Min:

    0.99

  • Wideband:

    YES

  • Width:

    4 mm

ADA4940-2ACPZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4940-2ACPZ-RL involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To optimize the ADA4940-2ACPZ-RL's performance for high-frequency applications, it's recommended to use a low-pass filter at the input, minimize the input capacitance, and use a high-frequency capable PCB material. Additionally, the device's bandwidth can be optimized by adjusting the gain and the output load impedance.
  • The recommended power-up sequence for the ADA4940-2ACPZ-RL is to first apply the analog power supply (VCC) and then the digital power supply (VDD). This ensures that the device's internal circuitry is properly initialized and prevents latch-up or damage.
  • To troubleshoot common issues with the ADA4940-2ACPZ-RL, it's recommended to check the PCB layout for any noise or signal integrity issues, verify the power supply voltage and current, and check for any component damage or malfunction. Additionally, using a scope or a logic analyzer can help identify the root cause of the issue.
  • The recommended thermal management strategy for the ADA4940-2ACPZ-RL involves using a heat sink or a thermal pad to dissipate heat, ensuring good airflow around the device, and minimizing the device's power consumption. Additionally, the device's thermal shutdown feature can be used to prevent overheating.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADA4940-2ACPZ-RL Overview

Use the download button to access the ADA4940-2ACPZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADA49, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
