ADA4945-1ACPZ-RL - Analog Devices

Description: High Speed, ?0.1 ?V/?C Offset Drift, Fully Differential ADC Driver

Download ADA4945-1ACPZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

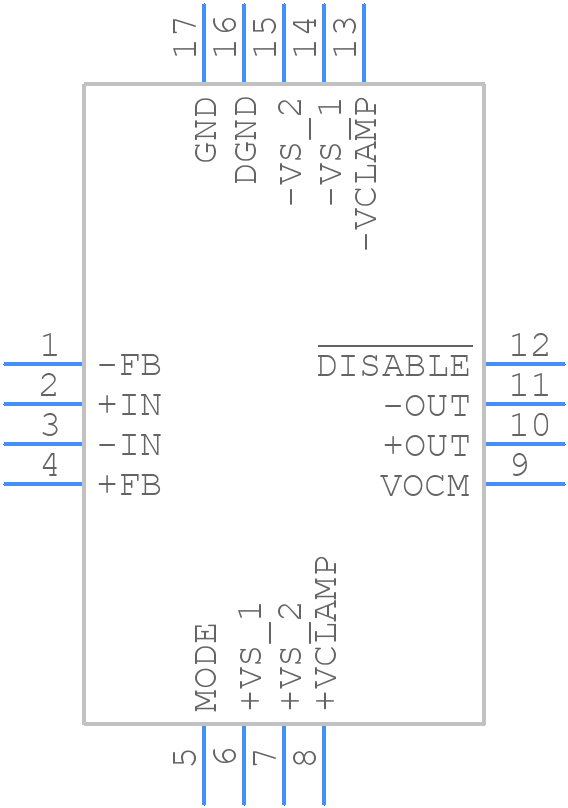

Symbol
ADA4945-1ACPZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4945-1ACPZ-RL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-22
click to zoom
3D Models
ADA4945-1ACPZ-RL - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-22
click to zoom

ADA4945-1ACPZ-RL Details

  • Manufacturer Part Number:

    ADA4945-1ACPZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-22

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-04-05

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Average Bias Current-Max (IIB):

    3.4 µA

  • Bias Current-Max (IIB) @25C:

    2.5 µA

  • Common-mode Reject Ratio-Nom:

    110 dB

  • Frequency Compensation:

    NO

  • Input Offset Voltage-Max:

    115 µV

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    600 V/us

  • Supply Current-Max:

    4.2 mA

  • Supply Voltage Limit-Max:

    11 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Min:

    1000000

  • Wideband:

    YES

  • Width:

    3 mm

ADA4945-1ACPZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4945-1ACPZ-RL involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To optimize the ADA4945-1ACPZ-RL's performance for high-frequency applications, it's recommended to use a low-pass filter at the input, minimize the input capacitance, and use a high-frequency capable PCB material. Additionally, the device's bandwidth can be optimized by adjusting the gain and the output load impedance.
  • The recommended power-up sequence for the ADA4945-1ACPZ-RL is to first apply the analog power supply (VCC) and then the digital power supply (VDD). This ensures that the device's internal circuitry is properly initialized and prevents latch-up or damage.
  • To troubleshoot common issues with the ADA4945-1ACPZ-RL, it's recommended to check the PCB layout for any noise or signal integrity issues, verify the power supply voltage and current, and check for any component failures or damage. Additionally, using a scope or a logic analyzer can help identify any signal integrity issues or oscillations.
  • The recommended thermal management strategy for the ADA4945-1ACPZ-RL involves using a heat sink or a thermal pad to dissipate heat, ensuring good airflow around the device, and minimizing the device's power consumption. Additionally, it's recommended to operate the device within its specified temperature range to prevent overheating.
