ADATE304BBCZ footprint, schematic symbol and 3D model by Analog Devices

Symbol

click to zoom

PCB Footprints

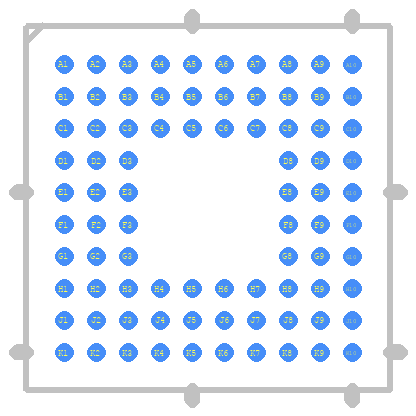

ADATE304BBCZ - Analog Devices PCB footprint - Other - Other - BGA84C80P10X10_900X900X120

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ADATE304BBCZ
Part Number ADATE304BBCZ
Manufacturer Analog Devices
Pin Count 84
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - BGA84C80P10X10_900X900X120
Released Date Jan 11, 2017
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

ADATE304BBCZ Details

Manufacturer Part Number:
ADATE304BBCZ
Source Url Status Check Date:
2013-05-01 14:56:34.42
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
BGA
Package Description:
CSP-100/84
Pin Count:
84
Manufacturer Package Code:
BC-84-2
Country Of Origin:
South Korea
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
10
Interface IC Type:
INTERFACE CIRCUIT
JESD-30 Code:
S-XBGA-B84
JESD-609 Code:
e1
Length:
9 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
84
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
UNSPECIFIED
Package Code:
TFBGA
Package Equivalence Code:
BGA84,10X10,32
Package Shape:
SQUARE
Package Style:
GRID ARRAY, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.2 mm
Supply Voltage-Max:
3.5 V
Supply Voltage-Min:
3.1 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Terminal Finish:
Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Form:
BALL
Terminal Pitch:
0.8 mm
Terminal Position:
BOTTOM
Time@Peak Reflow Temperature-Max (s):
30
Width:
9 mm

ADATE304BBCZ Frequently Asked Questions (FAQs)

A good PCB layout is crucial for the ADATE304BBCZ. Ensure a solid ground plane, keep analog and digital traces separate, and use a 4-layer board with a dedicated power plane. Also, place decoupling capacitors close to the device and use a common mode filter to reduce EMI.
Consult the ADATE304BBCZ evaluation board documentation and user guides for configuration examples. You can also use Analog Devices' ADI's evaluation software, such as the ADI Evaluation Board Software, to simplify the configuration process.
The ADATE304BBCZ has a maximum junction temperature of 150°C. Ensure good airflow, use a heat sink if necessary, and avoid blocking the thermal pad on the bottom of the package. You can also use thermal interface materials to improve heat dissipation.
Check the power supply, decoupling, and grounding. Ensure proper termination and impedance matching. Use an oscilloscope to analyze the output and input signals. Consult the datasheet and application notes for troubleshooting guides and common pitfalls to avoid.
Yes, the ADATE304BBCZ is sensitive to electromagnetic interference. Use a common mode filter, ensure good shielding, and keep the device away from high-frequency sources. Follow proper PCB layout and grounding practices to minimize EMI.

Trust Checks

System Verified

ADATE304BBCZ Overview

Use the download button to access the ADATE304BBCZ schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like ADATE, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
