ADAU1328BSTZ - Analog Devices

Description: ADAU1328BSTZ, Audio Encoder & Decoder IC General Purpose Stereo-channel 24bit- 192ksps

Download ADAU1328BSTZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

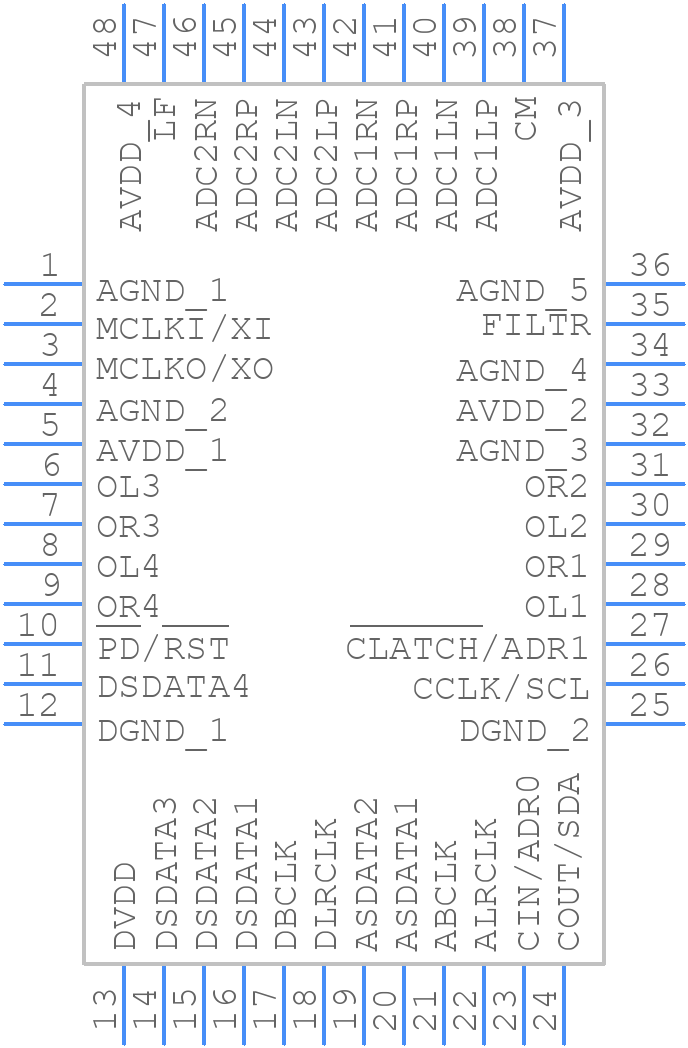

ADAU1328BSTZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADAU1328BSTZ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - ST-48 (LQFP)
click to zoom
3D Models
ADAU1328BSTZ - Analog Devices - 3D model - Quad Flat Packages - ST-48 (LQFP)
click to zoom

ADAU1328BSTZ Details

  • Manufacturer Part Number:

    ADAU1328BSTZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Package Description:

    LEAD FREE, MS-026BBC, LQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    ST-48

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

ADAU1328BSTZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VCC, and then the clock signal. This ensures that the internal voltage regulators are powered up correctly and the device is properly initialized.
  • The ADAU1328 can be configured using the SigmaStudio graphical development environment, which provides a user-friendly interface for designing and implementing audio processing algorithms. The software allows you to select from a range of audio processing blocks, configure the signal flow, and optimize the system for your specific application.
  • The maximum clock frequency that can be used with the ADAU1328 is 192 kHz. However, the device can also operate at lower clock frequencies, such as 96 kHz, 48 kHz, or 44.1 kHz, depending on the specific application requirements.
  • Yes, the ADAU1328 can be used in a stereo audio application. The device has two independent audio channels, each with its own ADC, DAC, and signal processing path. This allows for independent processing of left and right audio channels in a stereo application.
  • The ADAU1328 has a range of built-in audio processing algorithms, including EQ, compression, and limiting. These algorithms can be configured and customized using the SigmaStudio software. Additionally, users can also implement their own custom audio processing algorithms using the device's programmable DSP core.
