ADAU1850BCBZRL - Analog Devices

Description: Interface - CODECs Three ADCs, One DAC, Low Power Codec with Audio/FastDSP

Download ADAU1850BCBZRL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

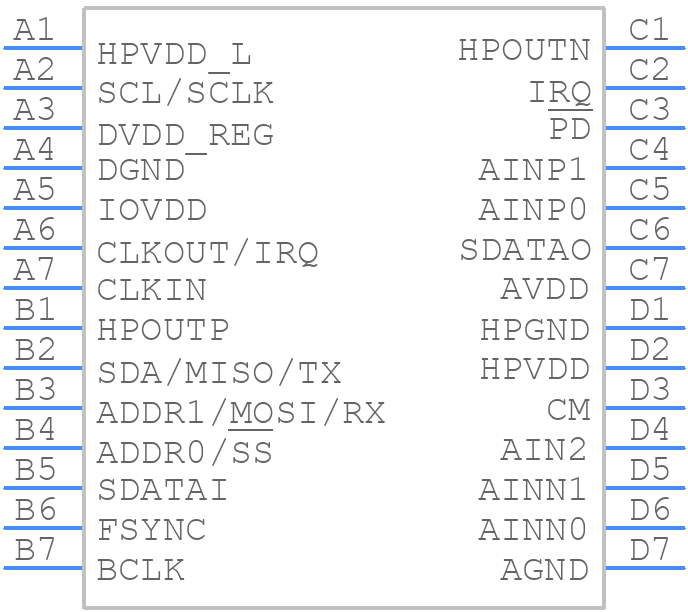

ADAU1850BCBZRL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADAU1850BCBZRL - Analog Devices PCB footprint - BGA - BGA - ADAU1850BCBZRL
click to zoom
3D Models
ADAU1850BCBZRL - Analog Devices - 3D model - BGA - ADAU1850BCBZRL
click to zoom

ADAU1850BCBZRL Details

  • Manufacturer Part Number:

    ADAU1850BCBZRL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    CB-28-5

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-XBGA-B28

  • Length:

    2.957 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA28,4X7,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    0.57 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Width:

    1.757 mm

ADAU1850BCBZRL Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VDD_IO, and then the clock signal. This ensures proper initialization of the device.
  • The ADAU1850 can be configured using the SigmaStudio software, which provides a graphical interface for designing and implementing audio processing algorithms. The software also includes a library of pre-built blocks and filters to simplify the design process.
  • The ADAU1850 supports clock frequencies up to 192 kHz, making it suitable for high-quality audio applications.
  • Yes, the ADAU1850 is a multi-channel audio codec that can support up to 8 channels of audio. It can be used in a variety of multi-channel audio applications, including home theaters, automotive systems, and professional audio equipment.
  • The ADAU1850 uses a proprietary audio processing engine that can be programmed using the SigmaStudio software. The software provides a range of audio processing blocks, including filters, equalizers, and dynamics processors, that can be combined to create complex audio processing algorithms.
