ADC-002A-2 - Adam Tech

Description: ADC-002A-2

Download ADC-002A-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

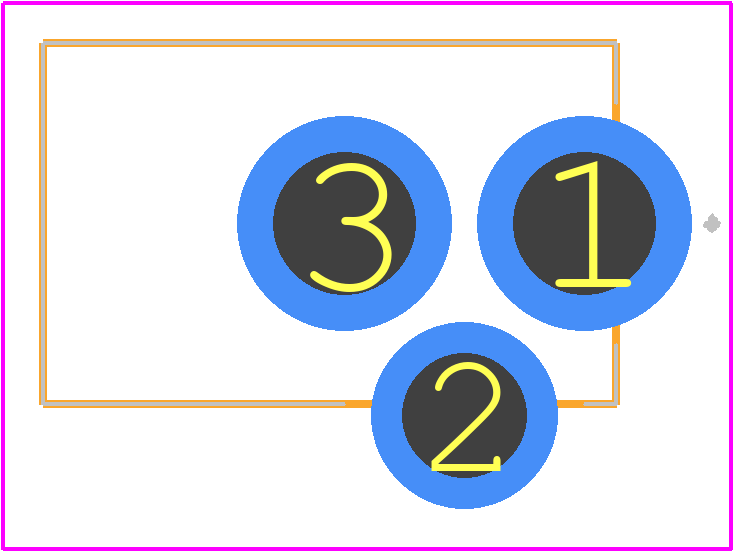

ADC-002A-2 - Adam Tech PCB footprint - Other - Other - ADC-002A-2-1
click to zoom
3D Models
ADC-002A-2 - Adam Tech  - 3D model - Other - ADC-002A-2-1
click to zoom

ADC-002A-2 Details

  • Manufacturer Part Number:

    ADC-002A-2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Adam Technologies Inc

  • YTEOL:

    6.25

  • Body Breadth:

    0.421 inch

  • Body Depth:

    0.571 inch

  • Body Length:

    0.378 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    DC POWER JACK

  • Contact Finish Mating:

    TIN

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    COPPER ALLOY

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Pin Diameter:

    2.5 mm

  • Rated Current (Power):

    5 A

  • Rated Voltage:

    12 V

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

ADC-002A-2 Frequently Asked Questions (FAQs)

  • Adam Technologies recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate to minimize noise and interference.
  • Calibration requires a precise voltage reference and a stable temperature environment. Use a high-precision voltage reference and ensure the device is at a stable temperature before calibration.
  • The maximum allowable input voltage is ±Vref, which is typically ±5V. Exceeding this voltage may damage the device.
  • The ADC-002A-2 is rated for operation up to 85°C. However, accuracy and reliability may degrade above 70°C. Consult Adam Technologies for custom high-temperature solutions.
  • Use a shielded enclosure, keep analog and digital signals separate, and use EMI filters or ferrite beads on the input and output lines to minimize EMI.
