ADC-20-132+ - Mini-Circuits

Description: RF Directional Coupler General Purpose 100MHz ~ 1.3GHz 20dB 4W 6-SMD, Flat Leads , -40C ~ +85C

Download ADC-20-132+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

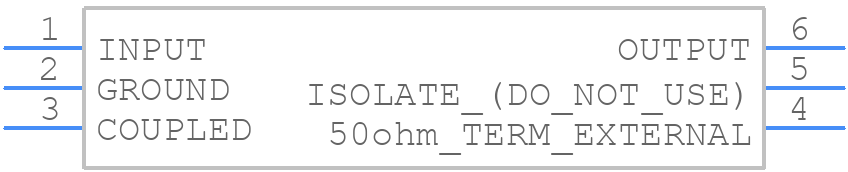

ADC-20-132+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
ADC-20-132+ - Mini-Circuits PCB footprint - Other - Other - CD542_2025
click to zoom
3D Models
ADC-20-132+ - Mini-Circuits - 3D model - Other - CD542_2025
click to zoom

ADC-20-132+ Details

  • Manufacturer Part Number:

    ADC-20-132+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2016-02-23

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.09

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    33.01 dBm

  • Insertion Loss-Max:

    0.7 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    1300 MHz

  • Operating Frequency-Min:

    100 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    FL6,.22,100

  • RF/Microwave Device Type:

    DIRECTIONAL COUPLER

  • Surface Mount:

    YES

  • VSWR-Max:

    1.22

ADC-20-132+ Frequently Asked Questions (FAQs)

  • The recommended input impedance is 50 ohms, which is the standard impedance for most RF and microwave applications.
  • Yes, the ADC-20-132+ can be used with a single-ended input, but it is recommended to use a balun or a transformer to convert the single-ended signal to a differential signal for optimal performance.
  • The maximum input power that the ADC-20-132+ can handle is +10 dBm, but it's recommended to operate at a lower power level to ensure optimal performance and to prevent damage to the device.
  • Yes, the ADC-20-132+ can handle a DC offset, but it's recommended to AC-couple the input signal to remove any DC component and to prevent damage to the device.
  • The typical current consumption of the ADC-20-132+ is around 350 mA, but it can vary depending on the operating frequency and the input power level.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADC-20-132+ Overview

Use the download button to access the ADC-20-132+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADC-2, or try a keyword search, such as RF/Microwave Couplers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
