ADCH-80+ - Mini-Circuits

Description: SMT RF Choke 50 MHz - 10 GHz 50Ω

Download ADCH-80+ Model

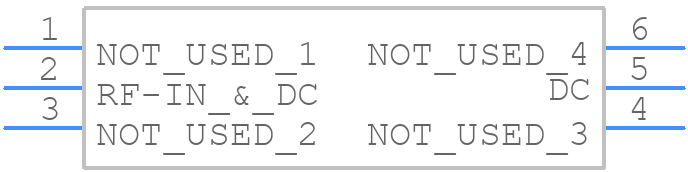

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADCH-80+ - Mini-Circuits PCB footprint - Other - Other - CASE STYLE: CD542
click to zoom
3D Models
ADCH-80+ - Mini-Circuits  - 3D model - Other - CASE STYLE: CD542
click to zoom

ADCH-80+ Details

  • Manufacturer Part Number:

    ADCH-80+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.75

  • Inductance-Nom (L):

    7 µH

  • Inductor Application:

    RF INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Rated Current-Max:

    0.1 A

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    NO

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Placement:

    DUAL IN-LINE

  • Terminal Shape:

    FLAT

ADCH-80+ Frequently Asked Questions (FAQs)

  • A good grounding scheme is crucial for the ADCH-80+. A solid ground plane and short, direct connections to the device's ground pins are recommended. Additionally, a low-inductance path to the power supply is essential. A 4-layer PCB with a dedicated ground plane and power plane is recommended.
  • The ADCH-80+ requires careful input and output matching to achieve optimal performance. Use a network analyzer to measure the device's input and output impedance, and then design a matching network using a tool like the Mini-Circuits' matching network calculator or a similar tool.
  • The ADCH-80+ can handle up to 1W of input power, but this may vary depending on the specific application and operating conditions. It's essential to ensure that the device is operated within its recommended power handling capabilities to avoid damage or degradation.
  • The ADCH-80+ is rated for operation from -40°C to +85°C. Ensure good airflow around the device, and consider using a heat sink or thermal management system if the device will be operating in a high-temperature environment.
  • Use a controlled soldering iron temperature (below 260°C) and a solder with a low melting point (e.g., 63Sn/37Pb). Avoid applying excessive heat or mechanical stress during assembly, and ensure that the device is properly secured to the PCB to prevent movement or vibration.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADCH-80+ Overview

Use the download button to access the ADCH-80+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADCH-, or try a keyword search, such as Fixed Inductors

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
