ADCH-80A+ - Mini-Circuits

Description: Very wideband RF choke

Download ADCH-80A+ Model

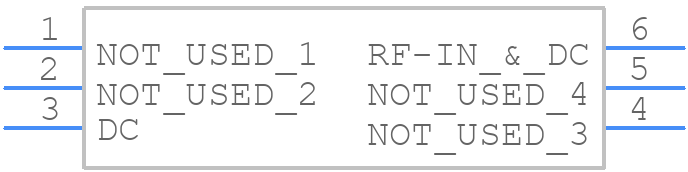

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADCH-80A+ - Mini-Circuits PCB footprint - Other - Other - ADCH-80A+-2
click to zoom
3D Models
ADCH-80A+ - Mini-Circuits  - 3D model - Other - ADCH-80A+-2
click to zoom

ADCH-80A+ Details

  • Manufacturer Part Number:

    ADCH-80A+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP, 3122, ROHS COMPLIANT

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.75

  • Case/Size Code:

    3127

  • Construction:

    Rectangular

  • Inductance-Nom (L):

    7 µH

  • Inductor Application:

    RF INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    5.59 mm

  • Package Length:

    7.87 mm

  • Package Style:

    SMT

  • Package Width:

    6.91 mm

  • Rated Current-Max:

    0.1 A

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    NO

  • Surface Mount:

    YES

  • Terminal Placement:

    DUAL IN-LINE

  • Terminal Shape:

    FLAT
