ADCLK846BCPZ-REEL7 - Analog Devices

Description: 12 CMOS Output Buffer

Download ADCLK846BCPZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

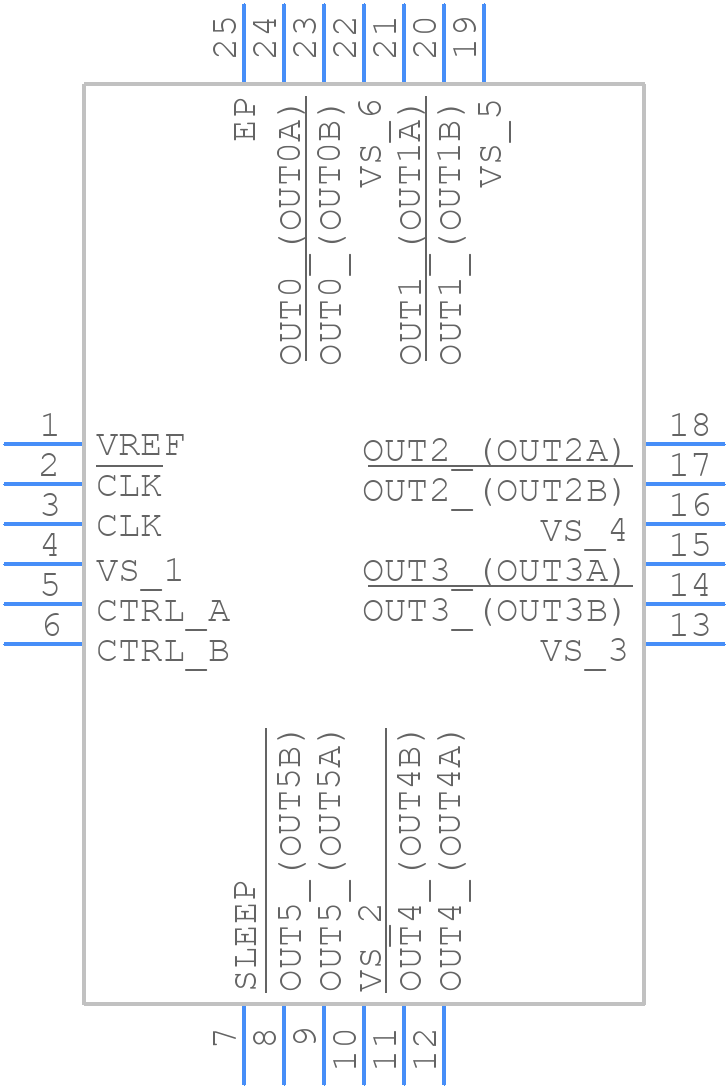

Symbol
ADCLK846BCPZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADCLK846BCPZ-REEL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-Lead Lead Frame Chip Scale Package [LFCSP] 4 mm × 4 mm and 0.75 mm Package Height (CP-24-14)
click to zoom
3D Models
ADCLK846BCPZ-REEL7 - Analog Devices - 3D model - Quad Flat No-Lead - 24-Lead Lead Frame Chip Scale Package [LFCSP] 4 mm × 4 mm and 0.75 mm Package Height (CP-24-14)
click to zoom

ADCLK846BCPZ-REEL7 Details

  • Manufacturer Part Number:

    ADCLK846BCPZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-14

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Family:

    CMOS

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Max I(ol):

    0.01 A

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of True Outputs:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    4.2 ns

  • Propagation Delay (tpd):

    4.2 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.64 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    1.89 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

  • fmax-Min:

    250 MHz

ADCLK846BCPZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADCLK846BCPZ-REEL7 involves keeping the clock signal traces as short as possible, using a solid ground plane, and minimizing the distance between the clock output and the load. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to decouple the power supply with a 0.1uF capacitor.
  • To ensure proper powering and decoupling of the ADCLK846BCPZ-REEL7, use a low-dropout regulator (LDO) to power the device, and decouple the power supply with a 0.1uF capacitor. Additionally, use a 10uF capacitor in parallel with a 0.1uF capacitor to filter out high-frequency noise.
  • The ADCLK846BCPZ-REEL7 can handle clock frequencies up to 1.5 GHz, but the maximum frequency may vary depending on the specific application and PCB layout. It's recommended to consult the datasheet and application notes for more information.
  • To configure the ADCLK846BCPZ-REEL7 for a specific clock frequency, use the device's internal PLL to multiply the input clock frequency. The PLL can be programmed using the device's control pins or through an external microcontroller. Consult the datasheet and application notes for more information on PLL programming.
  • The typical power consumption of the ADCLK846BCPZ-REEL7 is around 30mA at 3.3V supply voltage, but this can vary depending on the specific application, clock frequency, and output load. Consult the datasheet for more information on power consumption.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADCLK846BCPZ-REEL7 Overview

Use the download button to access the ADCLK846BCPZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADCLK, or try a keyword search, such as Clock Drivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
