ADCLK905BCPZ-R2 - Analog Devices

Description: Clock Buffer 1:1 ECL, 7 Gbpps CLOCK/DATA BUFFERS

Download ADCLK905BCPZ-R2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

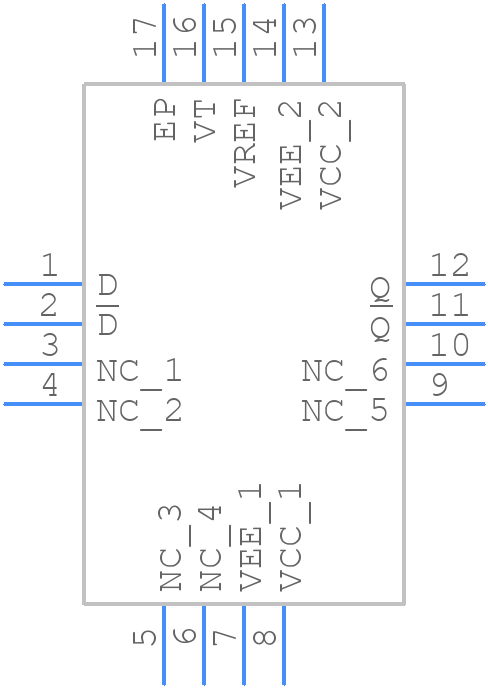

ADCLK905BCPZ-R2 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADCLK905BCPZ-R2 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-27_2022
click to zoom
3D Models
ADCLK905BCPZ-R2 - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-27_2022
click to zoom

ADCLK905BCPZ-R2 Details

  • Manufacturer Part Number:

    ADCLK905BCPZ-R2

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-27

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Family:

    905

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of True Outputs:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    63 mA

  • Prop. Delay@Nom-Sup:

    0.125 ns

  • Propagation Delay (tpd):

    0.125 ns

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.63 V

  • Supply Voltage-Min (Vsup):

    2.375 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADCLK905BCPZ-R2 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADCLK905BCPZ-R2 involves keeping the clock input traces as short as possible, using a solid ground plane, and minimizing the distance between the clock input and the device. Additionally, it's recommended to use a low-impedance clock source and to decouple the power supply pins with capacitors.
  • The ADCLK905BCPZ-R2 requires a single 3.3V power supply. It's recommended to use a low-dropout linear regulator (LDO) to power the device, and to decouple the power supply pins with 0.1uF and 10uF capacitors in parallel. Additionally, it's recommended to use a 10nF capacitor to decouple the VCC pin to GND.
  • The ADCLK905BCPZ-R2 can handle clock frequencies up to 2.5GHz. However, the maximum clock frequency may vary depending on the specific application and the quality of the clock signal. It's recommended to consult the datasheet and to perform thorough testing to ensure the device meets the required specifications.
  • The ADCLK905BCPZ-R2 has a programmable clock output frequency, which can be configured using the device's control pins. The specific configuration will depend on the desired clock output frequency and the application requirements. It's recommended to consult the datasheet and to use the device's evaluation board to simplify the configuration process.
  • The typical power consumption of the ADCLK905BCPZ-R2 is around 150mW. However, the actual power consumption may vary depending on the specific application, the clock frequency, and the output load. It's recommended to consult the datasheet and to perform thorough testing to ensure the device meets the required power consumption specifications.
