ADCLK944BCPZ-WP - Analog Devices

Description: Four LVPECL Outputs,SiGe Clock Fanout Buffer

Download ADCLK944BCPZ-WP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

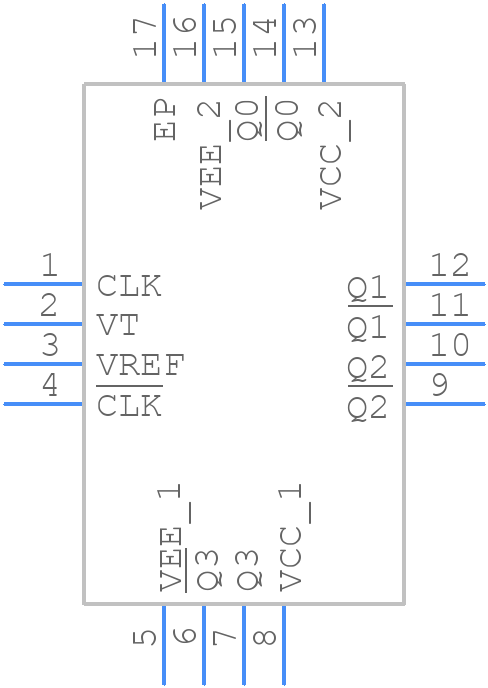

Symbol
ADCLK944BCPZ-WP - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADCLK944BCPZ-WP - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-18
click to zoom
3D Models
ADCLK944BCPZ-WP - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-18
click to zoom

ADCLK944BCPZ-WP Details

  • Manufacturer Part Number:

    ADCLK944BCPZ-WP

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-18

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Family:

    944

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of True Outputs:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    214 mA

  • Propagation Delay (tpd):

    0.13 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.015 ns

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.63 V

  • Supply Voltage-Min (Vsup):

    2.375 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3 mm

ADCLK944BCPZ-WP Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADCLK944BCPZ-WP involves keeping the clock signal traces as short as possible, using a solid ground plane, and minimizing the distance between the clock output and the load. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to decouple the power supply with a 0.1uF capacitor.
  • To ensure proper termination, the ADCLK944BCPZ-WP output should be terminated with a 50Ω resistor to match the impedance of the transmission line. Additionally, the output should be AC-coupled to the load using a capacitor with a value of at least 100nF.
  • The recommended power-up sequence for the ADCLK944BCPZ-WP is to apply power to the VCC pin first, followed by the clock input signal. This ensures that the internal bias circuitry is properly initialized before the clock signal is applied.
  • To minimize jitter in the ADCLK944BCPZ-WP output signal, it's recommended to use a high-quality clock input signal, minimize the length of the clock signal traces, and use a low-jitter clock source. Additionally, the power supply should be well-regulated and decoupled to minimize noise.
  • The ADCLK944BCPZ-WP is rated for operation over the industrial temperature range of -40°C to +85°C. However, it's recommended to operate the device within a temperature range of 0°C to +70°C for optimal performance and reliability.
