ADCLK950BCPZ-REEL7 - Analog Devices

Description: Clock Drivers & Distribution 2/10 High Performance LVPECL clock fanou

Download ADCLK950BCPZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

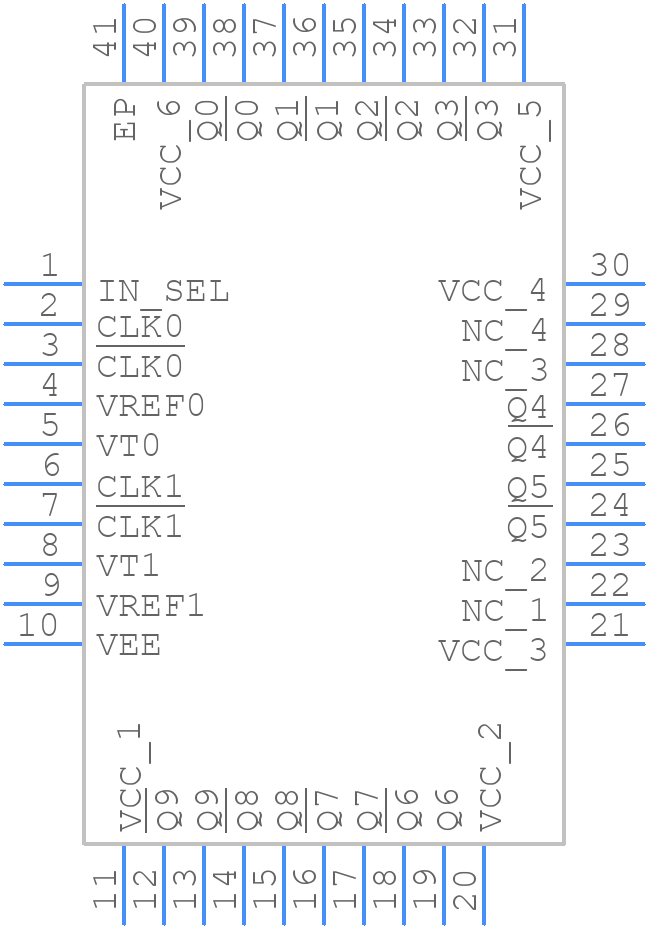

ADCLK950BCPZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADCLK950BCPZ-REEL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-40-16 (LFCSP)
click to zoom
3D Models
ADCLK950BCPZ-REEL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-40-16 (LFCSP)
click to zoom

ADCLK950BCPZ-REEL7 Details

  • Manufacturer Part Number:

    ADCLK950BCPZ-REEL7

  • Source Url Status Check Date:

    2013-05-01 14:56:34.779

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    6 X 6 MM, ROHS COMPLIANT, MO-220VJJD-2, LFCSP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Family:

    950

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Number of True Outputs:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Prop. Delay@Nom-Sup:

    0.245 ns

  • Propagation Delay (tpd):

    0.21 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.045 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.63 V

  • Supply Voltage-Min (Vsup):

    2.97 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

ADCLK950BCPZ-REEL7 Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout in the ADCLK950 evaluation board documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The ADCLK950 can be configured for a specific clock frequency using the SPI interface. The device has a range of registers that can be programmed to set the clock frequency, phase, and amplitude. Refer to the ADCLK950 datasheet and programming guide for more information.
  • The ADCLK950 has an industrial temperature range of -40°C to +85°C, making it suitable for use in a wide range of applications. However, it's essential to ensure that the device is operated within the recommended temperature range to maintain its performance and reliability.
  • Yes, the ADCLK950 can operate with a 3.3V power supply. The device has a wide power supply range of 2.97V to 3.63V, making it compatible with 3.3V systems. However, ensure that the power supply noise and ripple are within the recommended specifications to maintain the device's performance.
  • Analog Devices provides a range of resources to help troubleshoot issues with the ADCLK950, including application notes, FAQs, and technical support. Additionally, the device has a built-in diagnostic feature that can help identify issues with the clock signal or power supply.
