ADCMP392ARZ - Analog Devices

Description: ANALOG DEVICES - ADCMP392ARZ - Analogue Comparator, Dual, Low Power, 2 Comparators, 2.3V to 5.5V, NSOIC, 8 Pins

Download ADCMP392ARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

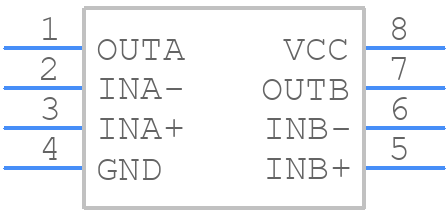

ADCMP392ARZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADCMP392ARZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead Standard Small Outline Package [SOIC_N]_a
click to zoom
3D Models
ADCMP392ARZ - Analog Devices - 3D model - Small Outline Packages - 8-Lead Standard Small Outline Package [SOIC_N]_a
click to zoom

ADCMP392ARZ Details

  • Manufacturer Part Number:

    ADCMP392ARZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.08 µA

  • Bias Current-Max (IIB) @25C:

    0.08 µA

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Response Time-Nom:

    9700 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.0293 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ADCMP392ARZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the input traces as short as possible. Additionally, use a low-pass filter at the input to reduce high-frequency noise.
  • The ADCMP392ARZ does not require calibration. It is a self-calibrating ADC that uses an internal calibration circuit to ensure accurate measurements. However, it's essential to follow the recommended layout and routing guidelines to minimize noise and ensure optimal performance.
  • The maximum sampling rate of the ADCMP392ARZ is 1 MSPS. The power consumption increases with the sampling rate, but the device is designed to be power-efficient, and the power consumption is typically around 1.5 mA at 1 MSPS.
  • The ADCMP392ARZ has internal overvoltage protection on the input pins, but it's still essential to use external protection circuitry, such as voltage-limiting resistors or diodes, to prevent damage from excessive voltage.
  • A good decoupling practice is to use a 10 uF capacitor in parallel with a 100 nF capacitor, placed as close as possible to the power pins of the ADCMP392ARZ. This helps to filter out noise and ensure stable operation.
