ADCMP393ARUZ - Analog Devices

Description: Analog Comparators Quad Comparator

Download ADCMP393ARUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

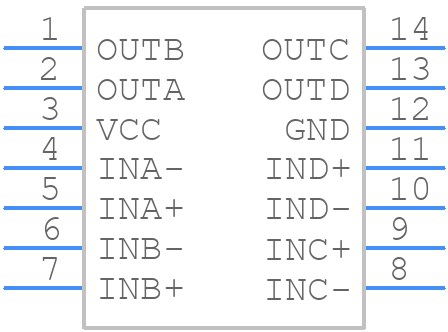

ADCMP393ARUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADCMP393ARUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 14-Lead TSSO
click to zoom
3D Models
ADCMP393ARUZ - Analog Devices - 3D model - Small Outline Packages - 14-Lead TSSO
click to zoom

ADCMP393ARUZ Details

  • Manufacturer Part Number:

    ADCMP393ARUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    RU-14

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.08 µA

  • Bias Current-Max (IIB) @25C:

    0.08 µA

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Response Time-Nom:

    4900 ns

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    0.0495 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ADCMP393ARUZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the input traces as short as possible. Additionally, use a low-pass filter at the input to reduce high-frequency noise.
  • The ADCMP393ARUZ does not require calibration. It is a self-contained, fully calibrated ADC that provides accurate measurements out of the box. However, it's essential to follow the recommended layout and routing guidelines to minimize noise and ensure optimal performance.
  • The maximum sampling rate of the ADCMP393ARUZ is 1 MSPS. The power consumption increases with the sampling rate, but the device is designed to operate at low power consumption even at high sampling rates. The typical current consumption is 3.5 mA at 1 MSPS.
  • The ADCMP393ARUZ has built-in overvoltage protection up to 7 V and undervoltage protection down to 2.7 V. However, it's essential to ensure that the input voltage remains within the recommended operating range to prevent damage to the device.
  • The recommended input signal range for the ADCMP393ARUZ is 0 V to VREF (2.5 V typical). Operating outside this range may affect the accuracy of the measurements. It's essential to ensure the input signal is within the recommended range to achieve optimal performance.
