ADCMP393ARZ - Analog Devices

Description: Analog Devices ADCMP393ARZ Quad Comparator, Open Drain O/P, 0.15/1.1μs Rise/Fall, 2.3 → 5.5 V 14-Pin SOIC

Download ADCMP393ARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

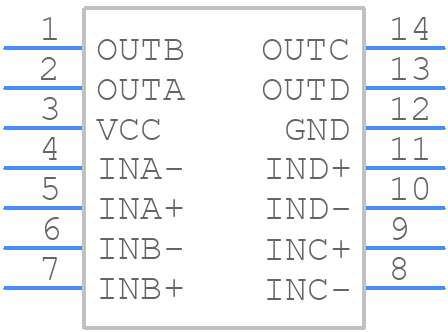

ADCMP393ARZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADCMP393ARZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - ADCMP393ARZ
click to zoom
3D Models
ADCMP393ARZ - Analog Devices - 3D model - Small Outline Packages - ADCMP393ARZ
click to zoom

ADCMP393ARZ Details

  • Manufacturer Part Number:

    ADCMP393ARZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    R-14

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.08 µA

  • Bias Current-Max (IIB) @25C:

    0.08 µA

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Response Time-Nom:

    4900 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.0495 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ADCMP393ARZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the input traces as short as possible. Additionally, use a low-pass filter or a ferrite bead to filter out high-frequency noise on the power supply lines.
  • The ADCMP393ARZ does not require calibration. It is a self-contained, fully calibrated ADC that provides accurate measurements out of the box. However, it's essential to follow proper PCB design and layout practices to minimize noise and ensure accurate measurements.
  • The maximum sampling rate of the ADCMP393ARZ is 1 MSPS. The power consumption increases with the sampling rate, but the device is designed to operate at low power consumption even at high sampling rates. The typical current consumption is 3.5 mA at 1 MSPS.
  • The ADCMP393ARZ has a parallel interface that can be easily interfaced with a microcontroller or FPGA. Key considerations for data transfer include ensuring proper synchronization, using a suitable clock frequency, and handling data transfer protocols such as SPI or parallel interface.
  • To minimize EMI and RFI, use a shielded enclosure, keep the ADCMP393ARZ away from high-frequency sources, and use a low-pass filter or ferrite bead on the power supply lines. Additionally, ensure proper grounding and shielding of the PCB and cables.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADCMP393ARZ Overview

Use the download button to access the ADCMP393ARZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADCMP, or try a keyword search, such as Comparators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
