ADCMP395ARMZ-RL7 - Analog Devices

Description: Analog Comparators Dual Comparator and reference

Download ADCMP395ARMZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

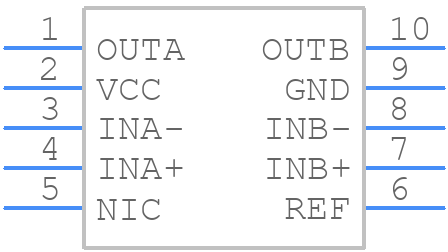

ADCMP395ARMZ-RL7 - Analog Devices - PCB symbol
