ADCMP395ARMZ - Analog Devices

Description: Analog Devices ADCMP395ARMZ Comparator, Open Drain O/P, 1.1μs 2.3 → 5.5 V 10-Pin MSOP

Download ADCMP395ARMZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

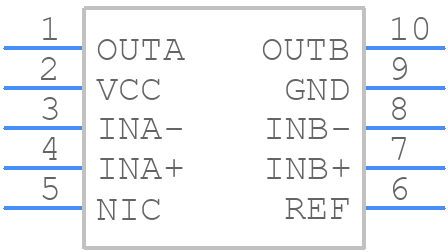

ADCMP395ARMZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADCMP395ARMZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 0-Lead Mini Small Outline Package [MSOP] (RM-10)
click to zoom
3D Models
ADCMP395ARMZ - Analog Devices - 3D model - Small Outline Packages - 0-Lead Mini Small Outline Package [MSOP] (RM-10)
click to zoom

ADCMP395ARMZ Details

  • Manufacturer Part Number:

    ADCMP395ARMZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.08 µA

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Response Time-Nom:

    9700 ns

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADCMP395ARMZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADCMP395 involves keeping the input traces as short as possible, using a solid ground plane, and minimizing noise coupling. It's also recommended to use a 4-layer PCB with a dedicated analog ground plane.
  • To ensure accurate temperature measurement, it's essential to calibrate the ADCMP395 using a thermocouple simulator or a precision temperature source. Additionally, ensure that the thermocouple is properly connected and that the ADCMP395 is operated within its specified temperature range.
  • The maximum cable length for the thermocouple connection to the ADCMP395 depends on the type of thermocouple and the noise environment. As a general rule, keep the cable length as short as possible (less than 1 meter) to minimize noise pickup and ensure accurate measurements.
  • While the ADCMP395 is optimized for use with K-type thermocouples, it can be used with other thermocouple types with some limitations. However, the accuracy and temperature range may be affected. Consult the datasheet and application notes for more information on using non-standard thermocouple types.
  • To minimize EMI effects, use a shielded cable for the thermocouple connection, keep the ADCMP395 away from high-frequency sources, and use a low-pass filter or a ferrite bead on the power supply lines. Additionally, ensure that the PCB layout is designed to minimize EMI susceptibility.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADCMP395ARMZ Overview

Use the download button to access the ADCMP395ARMZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADCMP, or try a keyword search, such as Comparators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
