ADCMP396ARZ - Analog Devices

Description: Analog Devices ADCMP396ARZ Quad Comparator, Open Drain O/P, 0.15/1.1μs Rise/Fall, 2.3 → 5.5 V 16-Pin SOIC

Download ADCMP396ARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

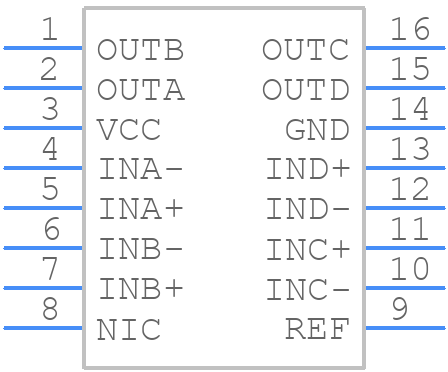

ADCMP396ARZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADCMP396ARZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead Standard Small Outline Package [SOIC_N]
click to zoom
3D Models
ADCMP396ARZ - Analog Devices - 3D model - Small Outline Packages - 16-Lead Standard Small Outline Package [SOIC_N]
click to zoom

ADCMP396ARZ Details

  • Manufacturer Part Number:

    ADCMP396ARZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    R-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.08 µA

  • Bias Current-Max (IIB) @25C:

    0.08 µA

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Response Time-Nom:

    4940 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.0594 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ADCMP396ARZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the input traces as short as possible. Additionally, use a low-pass filter or a ferrite bead to filter out high-frequency noise on the power supply lines.
  • The ADCMP396ARZ requires a dual supply voltage (VCC and VEE) and a bias voltage (VREF) to operate correctly. Incorrect biasing can lead to incorrect output voltage, reduced accuracy, and even damage to the device. Ensure that the bias voltage is within the recommended range (1.2V to 3.6V) and that the supply voltages are within the recommended range (2.7V to 5.5V).
  • The ADCMP396ARZ can handle input voltages up to 5.5V without damage. However, it's recommended to keep the input voltage within the recommended range (VCC - 1.5V to VEE + 1.5V) to ensure accurate conversion and prevent damage.
  • The ADCMP396ARZ outputs 12-bit digital data in a serial format. The output data is in a two's complement format, with the most significant bit (MSB) first. The output data can be read using a serial interface such as SPI or I2C.
  • The ADCMP396ARZ has a typical power consumption of 1.5mA at 3.3V supply voltage. To reduce power consumption, consider using a lower supply voltage, reducing the sampling rate, or using the device's power-down mode.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADCMP396ARZ Overview

Use the download button to access the ADCMP396ARZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADCMP, or try a keyword search, such as Comparators
