ADCMP553BRM - Analog Devices

Description: IC COMPARATOR PECL/LVPECL 8MSOP

Download ADCMP553BRM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

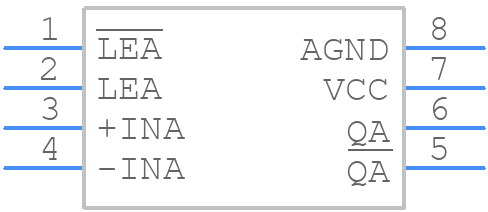

ADCMP553BRM - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADCMP553BRM - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-08-2022
click to zoom
3D Models
ADCMP553BRM - Analog Devices - 3D model - Small Outline Packages - RM-08-2022
click to zoom

ADCMP553BRM Details

  • Manufacturer Part Number:

    ADCMP553BRM

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    MO-187AA, MSOP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    10 µA

  • Bias Current-Max (IIB) @25C:

    5 µA

  • Input Offset Voltage-Max:

    10000 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e0

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-EMITTER

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    240

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    0.5 ns

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    42 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    ECL

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

ADCMP553BRM Frequently Asked Questions (FAQs)

  • A good PCB layout for ADCMP553BRM involves keeping the input traces as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a separate analog ground plane and to keep digital signals away from the analog inputs.
  • To ensure proper biasing, make sure to connect the VCC pin to a stable voltage source between 2.7V and 5.5V, and the GND pin to a solid ground plane. Also, ensure that the input common-mode voltage is within the recommended range of 1.2V to VCC - 1.2V.
  • The maximum allowable input voltage for ADCMP553BRM is 7V. To protect the device from overvoltage, use input protection diodes or voltage clamps to limit the input voltage to within the recommended range.
  • The optimal resistor values for the input stage depend on the specific application and input signal characteristics. As a general guideline, use resistors with values between 1kΩ and 10kΩ to ensure a good balance between noise immunity and input impedance.
  • The typical propagation delay for ADCMP553BRM is around 4ns. This delay should be taken into account when designing the system's timing and synchronization, especially in high-speed applications.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

ADCMP553BRM Overview

Use the download button to access the ADCMP553BRM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADCMP, or try a keyword search, such as Comparators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
