ADCMP561BRQZ - Analog Devices

Description: ADCMP561BRQZ, Dual Comparator Complementary 16-Pin QSOP

Download ADCMP561BRQZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

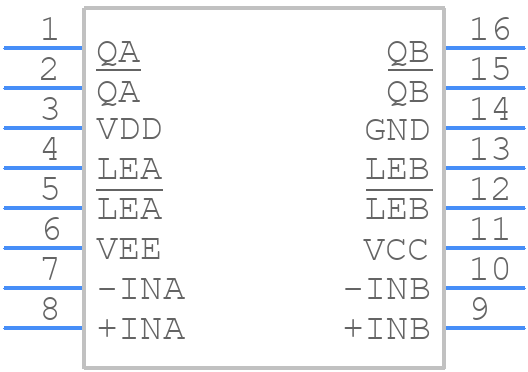

ADCMP561BRQZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADCMP561BRQZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RQ-16 (QSOP)_inch
click to zoom
3D Models
ADCMP561BRQZ - Analog Devices - 3D model - Small Outline Packages - RQ-16 (QSOP)_inch
click to zoom

ADCMP561BRQZ Details

  • Manufacturer Part Number:

    ADCMP561BRQZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    MO-137AB, QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RQ-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    10 µA

  • Input Offset Voltage-Max:

    10000 µV

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9022 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -6 V

  • Neg Supply Voltage-Nom (Vsup):

    -5.2 V

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-EMITTER

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    0.7 ns

  • Seated Height-Max:

    1.7526 mm

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9116 mm

ADCMP561BRQZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the ADCMP561BRQZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to decouple the VCC pin with a 0.1uF capacitor.
  • The ADCMP561BRQZ requires a single 2.7V to 5.5V power supply. Improper biasing can lead to incorrect output states, increased power consumption, and reduced reliability. Ensure the power supply is clean and well-regulated, and that the input voltage is within the recommended range.
  • The ADCMP561BRQZ can handle input frequencies up to 100 kHz. However, the maximum frequency may vary depending on the specific application and the quality of the input signal. It's recommended to consult the datasheet and application notes for more information.
  • The ADCMP561BRQZ has an open-drain output, which requires a pull-up resistor to function correctly. Not using a pull-up resistor can result in unpredictable behavior, increased power consumption, and reduced reliability. A pull-up resistor value between 1kΩ to 10kΩ is recommended.
  • The ADCMP561BRQZ has a maximum junction temperature of 150°C. Operating the device at high temperatures can lead to reduced performance, increased power consumption, and reduced reliability. Ensure proper thermal management, such as using a heat sink or thermal pad, to maintain a safe operating temperature.
