ADCMP562BRQZ - Analog Devices

Description: ADCMP562BRQZ, Dual Comparator Complementary 2-kanalers 20-Pin QSOP

Download ADCMP562BRQZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

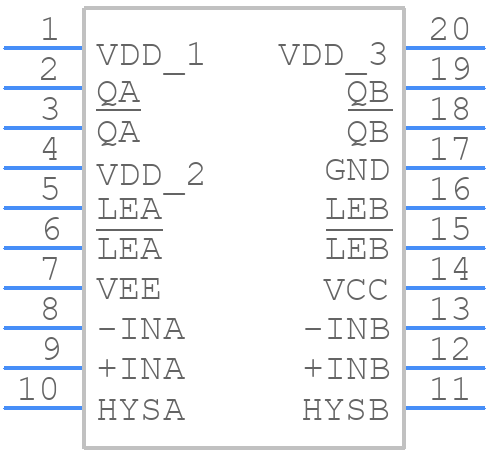

ADCMP562BRQZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADCMP562BRQZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - ADCMP562BRQZ-1
click to zoom
3D Models
ADCMP562BRQZ - Analog Devices - 3D model - Small Outline Packages - ADCMP562BRQZ-1
click to zoom

ADCMP562BRQZ Details

  • Manufacturer Part Number:

    ADCMP562BRQZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    MO-137AD, QSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RQ-20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    10 µA

  • Input Offset Voltage-Max:

    10000 µV

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    8.6614 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -6 V

  • Neg Supply Voltage-Nom (Vsup):

    -5.2 V

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-EMITTER

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    0.7 ns

  • Seated Height-Max:

    1.7526 mm

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9116 mm

ADCMP562BRQZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the input traces as short as possible. Additionally, use a low-ESR capacitor for the VCC pin and a 0.1uF capacitor for the VREF pin.
  • The ADCMP562BRQZ does not require calibration. It is a self-calibrating ADC that performs a self-calibration sequence on power-up. However, it's essential to ensure that the input signal is within the specified range and that the reference voltage is stable and accurate.
  • The maximum sampling rate of the ADCMP562BRQZ is 250 kSPS. The power consumption increases with the sampling rate, but the device is designed to operate at low power consumption even at high sampling rates. The typical current consumption is 1.5 mA at 250 kSPS.
  • The ADCMP562BRQZ outputs 12-bit digital data in a serial format. The output data is in a two's complement format, and the device provides a data-ready signal (DRDY) to indicate when the conversion is complete.
  • The recommended power-up sequence is to apply the analog power supply (VCC) before the digital power supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent latch-up and ensures proper device operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADCMP562BRQZ Overview

Use the download button to access the ADCMP562BRQZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADCMP, or try a keyword search, such as Comparators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
