ADCMP563BRQZ - Analog Devices

Description: ADCMP563BRQZ, Dual Comparator Complementary 16-Pin QSOP

Download ADCMP563BRQZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

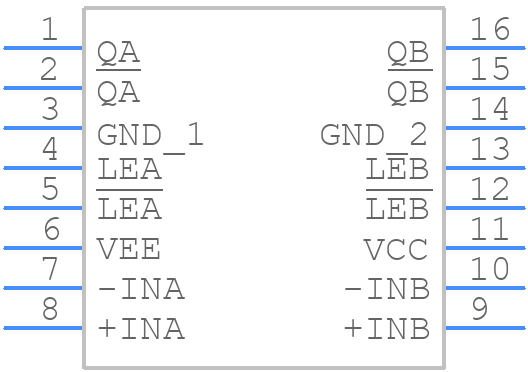

Symbol
ADCMP563BRQZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADCMP563BRQZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RQ-16 (QSOP)
click to zoom
3D Models
ADCMP563BRQZ - Analog Devices - 3D model - Small Outline Packages - RQ-16 (QSOP)
click to zoom

ADCMP563BRQZ Details

  • Manufacturer Part Number:

    ADCMP563BRQZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    ROHS COMPLIANT, MO-137AB, QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RQ-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    10 µA

  • Bias Current-Max (IIB) @25C:

    10 µA

  • Input Offset Voltage-Max:

    10000 µV

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -6 V

  • Neg Supply Voltage-Nom (Vsup):

    -5.2 V

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-EMITTER

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    0.83 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Width:

    3.91 mm

ADCMP563BRQZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the ADCMP563BRQZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to decouple the VCC pin with a 0.1uF capacitor.
  • The ADCMP563BRQZ requires a single 2.7V to 5.5V power supply. Improper biasing can lead to incorrect output states, increased power consumption, and reduced reliability. Ensure the power supply is clean and well-regulated, and that the input voltage is within the recommended range.
  • The ADCMP563BRQZ can handle input frequencies up to 10MHz. However, the maximum frequency may vary depending on the specific application and the quality of the input signal.
  • The hysteresis value depends on the specific application and the desired noise immunity. A general rule of thumb is to set the hysteresis value to 1/5 to 1/10 of the input signal amplitude. However, this value may need to be adjusted based on the specific noise characteristics of the application.
  • Operating the ADCMP563BRQZ outside the recommended temperature range of -40°C to 125°C can lead to reduced reliability, increased power consumption, and incorrect output states. Ensure the device is operated within the recommended temperature range for optimal performance and reliability.
