ADCMP564BRQZ - Analog Devices

Description: ADCMP564BRQZ, Dual Comparator Complementary 20-Pin QSOP

Download ADCMP564BRQZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

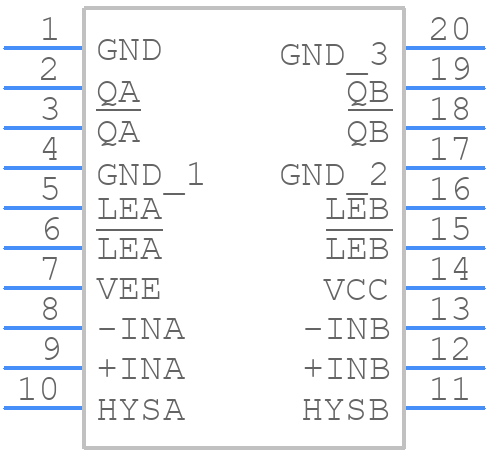

ADCMP564BRQZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADCMP564BRQZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RQ-20 (QSOP)
click to zoom
3D Models
ADCMP564BRQZ - Analog Devices - 3D model - Small Outline Packages - RQ-20 (QSOP)
click to zoom

ADCMP564BRQZ Details

  • Manufacturer Part Number:

    ADCMP564BRQZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    ROHS COMPLIANT, MO-137AD, QSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RQ-20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    10 µA

  • Bias Current-Max (IIB) @25C:

    10 µA

  • Input Offset Voltage-Max:

    10000 µV

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    8.66 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -6 V

  • Neg Supply Voltage-Nom (Vsup):

    -5.2 V

  • Number of Functions:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-EMITTER

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    0.83 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Width:

    3.91 mm

ADCMP564BRQZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADCMP564BRQZ involves keeping the input traces as short as possible, using a ground plane, and separating the analog and digital sections of the board. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to decouple the VCC pin with a 0.1uF capacitor.
  • To ensure proper biasing and configuration, refer to the datasheet for the recommended operating conditions and pin configurations. Additionally, consider the input common-mode voltage range, output logic level, and hysteresis requirements for your specific application. You may also need to consult with an Analog Devices application engineer or a experienced design engineer for guidance.
  • Potential sources of error or inaccuracy when using the ADCMP564BRQZ include input noise, offset voltage, and temperature drift. To mitigate these errors, use proper PCB layout and grounding techniques, ensure a stable power supply, and consider using a voltage reference or temperature compensation circuit. Additionally, consider using a higher-precision comparator or a different device if your application requires extremely high accuracy.
  • The ADCMP564BRQZ is rated for operation up to 125°C, but its performance may degrade at higher temperatures. Consult the datasheet for temperature-related specifications and consider using a thermally-enhanced package or a different device if your application requires operation at extremely high temperatures.
  • To troubleshoot issues with the ADCMP564BRQZ, start by verifying the power supply and input signals, then check the PCB layout and grounding. Use an oscilloscope to observe the input and output signals, and consult the datasheet for troubleshooting guidelines. If the issue persists, consider consulting with an Analog Devices application engineer or a experienced design engineer for guidance.
