ADCMP580BCPZ-WP - Analog Devices

Description: ADCMP580BCPZ-WP, Comparator Complementary 16-Pin LFCSP EP

Download ADCMP580BCPZ-WP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

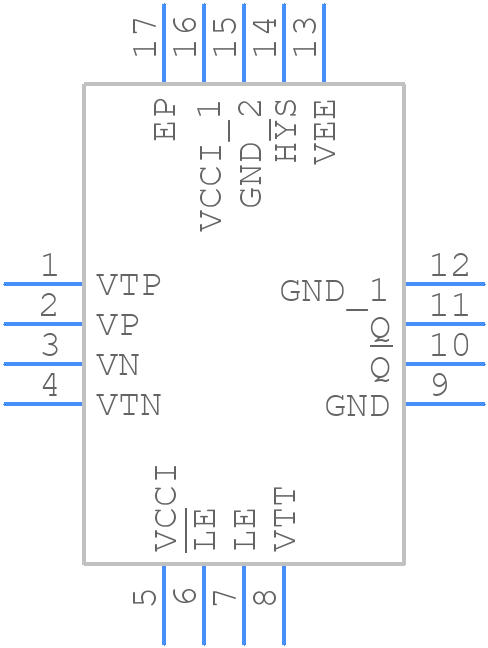

ADCMP580BCPZ-WP - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADCMP580BCPZ-WP - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-3 (LFCSP)
click to zoom
3D Models
ADCMP580BCPZ-WP - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-3 (LFCSP)
click to zoom

ADCMP580BCPZ-WP Details

  • Manufacturer Part Number:

    ADCMP580BCPZ-WP

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, MO-220VEED-2, LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-21

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    30 µA

  • Bias Current-Max (IIB) @25C:

    30 µA

  • Input Offset Voltage-Max:

    10000 µV

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage Limit-Max:

    -6 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-EMITTER

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    0.18 ns

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max:

    34 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADCMP580BCPZ-WP Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADCMP580BCPZ-WP involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help to reduce noise and improve performance.
  • To ensure proper biasing and powering of the ADCMP580BCPZ-WP, make sure to connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground plane. Also, ensure that the input signals are within the recommended voltage range and that the device is operated within the recommended temperature range.
  • For accurate and reliable conversions, it is recommended to use a low-pass filter or a band-pass filter to condition the input signal and remove any high-frequency noise or interference. Additionally, ensure that the input signal is within the recommended voltage range and that the signal is properly terminated to prevent reflections.
  • The output data from the ADCMP580BCPZ-WP is typically in a binary format and can be processed and analyzed using digital signal processing techniques. It is recommended to use a microcontroller or a digital signal processor to process the data and perform tasks such as filtering, averaging, and threshold detection.
  • The ADCMP580BCPZ-WP is commonly used in applications such as industrial automation, medical devices, and automotive systems. It can be used to convert analog sensor signals into digital data, which can then be processed and analyzed by a microcontroller or a digital signal processor. In a system design, the ADCMP580BCPZ-WP can be used to interface with sensors, transducers, and other analog devices.
