ADCMP581BCPZ-WP - Analog Devices

Description: Analog Devices ADCMP581BCPZ-WP Comparator, ECL O/P, 16-Pin LFCSP

Download ADCMP581BCPZ-WP Model

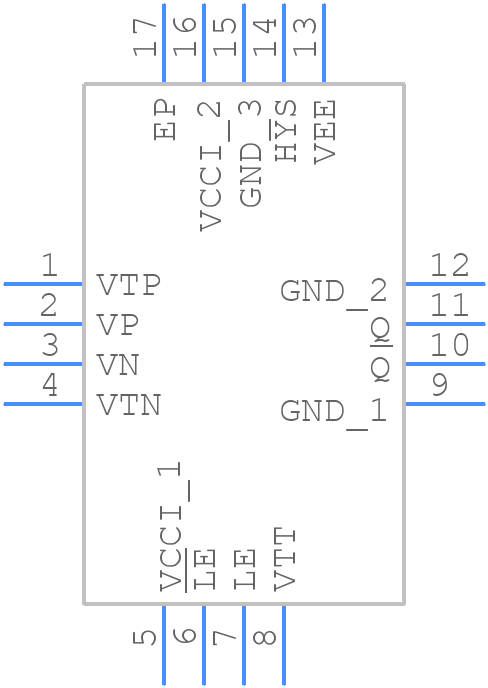

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADCMP581BCPZ-WP - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-21
click to zoom
3D Models
ADCMP581BCPZ-WP - Analog Devices  - 3D model - Quad Flat No-Lead - CP-16-21
click to zoom

ADCMP581BCPZ-WP Details

  • Manufacturer Part Number:

    ADCMP581BCPZ-WP

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, MO-220VEED-2, LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-21

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    30 µA

  • Bias Current-Max (IIB) @25C:

    30 µA

  • Input Offset Voltage-Max:

    10000 µV

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage Limit-Max:

    -6 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-EMITTER

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    0.18 ns

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max:

    19 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADCMP581BCPZ-WP Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADCMP581BCPZ-WP involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help to reduce noise and improve performance.
  • To ensure proper biasing and powering of the ADCMP581BCPZ-WP, make sure to follow the recommended power supply decoupling and bypassing scheme outlined in the datasheet. Use a low-noise, low-dropout regulator to power the device, and ensure that the power supply voltage is within the recommended range of 2.7V to 5.5V.
  • The maximum allowable input voltage for the ADCMP581BCPZ-WP is 5.5V. To protect the device from overvoltage conditions, use a voltage clamp or a transient voltage suppressor (TVS) diode to limit the input voltage to within the recommended range. Additionally, consider using a voltage regulator or a voltage limiter to regulate the input voltage.
  • To optimize the ADCMP581BCPZ-WP for high-speed applications, use a low-capacitance input signal, minimize the input impedance, and use a high-speed amplifier or buffer to drive the input signal. The ADCMP581BCPZ-WP has a bandwidth of 100 MHz and a slew rate of 100 V/μs, making it suitable for high-speed applications. However, the device may not be suitable for extremely high-speed applications (>100 MHz) due to its limited bandwidth and slew rate.
  • The typical power consumption of the ADCMP581BCPZ-WP is 1.2 mA at 3.3V supply voltage. To reduce power consumption in battery-powered applications, consider using a lower supply voltage, reducing the clock frequency, or using a power-down mode when the device is not in use. Additionally, using a low-power mode or a shutdown mode can help reduce power consumption.
