ADCMP602BRMZ-REEL - Analog Devices

Description: Analog Comparators Rail to rail,sing chan, TTL/CMOS Compara

Download ADCMP602BRMZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

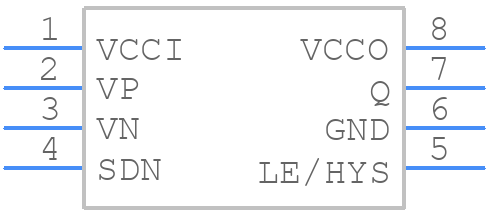

ADCMP602BRMZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADCMP602BRMZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-08
click to zoom
3D Models
ADCMP602BRMZ-REEL - Analog Devices - 3D model - Small Outline Packages - RM-08
click to zoom

ADCMP602BRMZ-REEL Details

  • Manufacturer Part Number:

    ADCMP602BRMZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    LEAD FREE, MO-187AA, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    5 µA

  • Bias Current-Max (IIB) @25C:

    5 µA

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    PUSH-PULL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    5 ns

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    3.5 mA

  • Supply Voltage Limit-Max:

    6 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADCMP602BRMZ-REEL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADCMP602BRMZ involves keeping the input traces as short as possible, using a solid ground plane, and minimizing noise coupling. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • The ADCMP602BRMZ requires a dual supply voltage of ±2.5V to ±5.5V. Ensure that the voltage supplies are well-regulated and decoupled with 0.1uF and 10uF capacitors. Also, ensure that the input common-mode voltage is within the recommended range of 0.5V to 3.5V.
  • The ADCMP602BRMZ can handle input frequencies up to 100 MHz. However, the bandwidth of the comparator is limited by the slew rate, which is typically around 10V/us. Therefore, the maximum input frequency is dependent on the input signal amplitude and the desired output response.
  • To minimize power consumption, ensure that the input signals are properly terminated, and the output is not loaded excessively. Also, consider using a lower supply voltage, as the power consumption is proportional to the square of the supply voltage. Additionally, consider using a power-down mode if the comparator is not in use.
  • The recommended input impedance for the ADCMP602BRMZ is 1 kΩ to 10 kΩ. This ensures that the input signal is properly terminated and minimizes reflections and ringing.
