ADCMP603BCPZ-WP - Analog Devices

Description: Analog Devices ADCMP603BCPZ-WP Comparator, Complementary O/P, 2.5 → 5.5 V 12-Pin LFCSP VQ

Download ADCMP603BCPZ-WP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

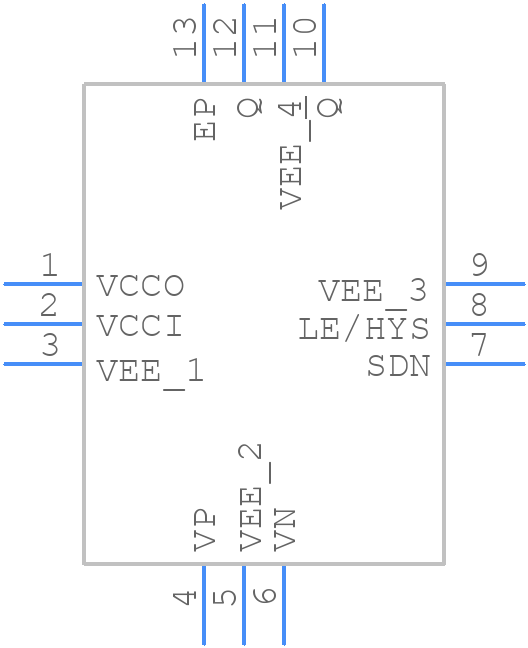

ADCMP603BCPZ-WP - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADCMP603BCPZ-WP - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-12-5
click to zoom
3D Models
ADCMP603BCPZ-WP - Analog Devices - 3D model - Quad Flat No-Lead - CP-12-5
click to zoom

ADCMP603BCPZ-WP Details

  • Manufacturer Part Number:

    ADCMP603BCPZ-WP

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    CP-12-5

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    5 µA

  • Bias Current-Max (IIB) @25C:

    5 µA

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    S-XQCC-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-COLLECTOR

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC12,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    5000 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage Limit-Max:

    6 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

ADCMP603BCPZ-WP Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADCMP603BCPZ-WP involves keeping the input traces as short as possible, using a solid ground plane, and minimizing noise coupling. It's also recommended to use a low-ESR capacitor for the VCC pin and to decouple the VCC pin with a 0.1uF capacitor.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source between 2.7V and 5.5V, and the GND pin to a solid ground plane. Also, ensure that the input voltage is within the recommended range of 0V to VCC.
  • The ADCMP603BCPZ-WP can handle input frequencies up to 100 kHz, but the response time and accuracy may degrade at higher frequencies. For optimal performance, it's recommended to keep the input frequency below 10 kHz.
  • To minimize power consumption, use a low voltage supply (e.g., 2.7V) and reduce the input frequency to the minimum required for your application. You can also consider using a lower-power comparator or a low-power mode if available.
  • The recommended input impedance for the ADCMP603BCPZ-WP is 1 kΩ or higher. This ensures that the input signal is not loaded down and that the comparator can accurately detect the input voltage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADCMP603BCPZ-WP Overview

Use the download button to access the ADCMP603BCPZ-WP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADCMP, or try a keyword search, such as Comparators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
