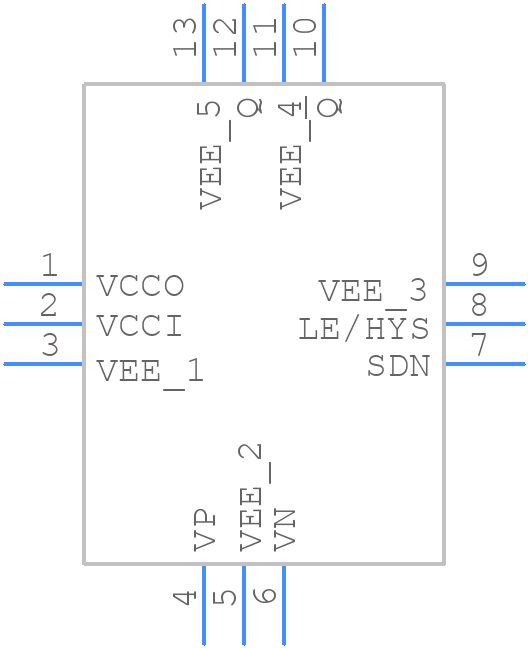

ADCMP605BCPZ-R2 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADCMP605BCPZ-R2 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-12-4)
click to zoom
3D Models
ADCMP605BCPZ-R2 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-12-4)
click to zoom

ADCMP605BCPZ-R2 Details

  • Manufacturer Part Number:

    ADCMP605BCPZ-R2

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, MO-220VEED-1, LFCSP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    CP-12-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    5 µA

  • Bias Current-Max (IIB) @25C:

    5 µA

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    S-XQCC-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-COLLECTOR; OPEN-DRAIN

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC12,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    3 ns

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

ADCMP605BCPZ-R2 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADCMP605BCPZ-R2 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help to reduce noise and improve performance.
  • To ensure proper biasing and powering of the ADCMP605BCPZ-R2, make sure to connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground plane. Also, ensure that the input voltage range is within the recommended range of 0.5V to 5.5V, and that the input signals are properly terminated to prevent ringing and reflections.
  • The ADCMP605BCPZ-R2 can handle input frequencies up to 100 MHz, but the device's performance may degrade at higher frequencies due to internal capacitance and resistance. It's recommended to use a low-pass filter or a buffer amplifier to condition the input signal and ensure optimal performance.
  • The optimal values of the external resistors and capacitors for the ADCMP605BCPZ-R2 depend on the specific application and the desired frequency response. A good starting point is to use the recommended values in the datasheet, and then adjust them based on the specific requirements of the application. It's also recommended to use a simulation tool or a SPICE model to optimize the component values.
  • The typical power consumption of the ADCMP605BCPZ-R2 is around 12mA at 5V supply voltage. To reduce power consumption, consider using a lower supply voltage, reducing the input frequency, or using a power-down mode when the device is not in use. Additionally, using a low-dropout regulator or a switching regulator can help to reduce power consumption.
