- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for ADD8504WRUZ
- Part Number ADD8504WRUZ
- Manufacturer Analog Devices
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - (RU-16)
- Released Date May 14, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
ADD8504WRUZ Details
-
Manufacturer Part Number:
ADD8504WRUZ
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
TSSOP
-
Package Description:
ROHS COMPLIANT, MO-153AB, TSSOP-16
-
Pin Count:
16
-
Manufacturer Package Code:
RU-16
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
Analog Devices Inc
ADD8504WRUZ Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital signals separate, and use a common mode filter to reduce EMI. Refer to the ADI's PCB layout guidelines for more information.
-
Follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the internal calibration registers. It's also recommended to perform periodic recalibration to maintain accuracy.
-
The ADD8504WRUZ can handle input voltages up to 12V without damage, but it's recommended to limit the input voltage to 5V to ensure accurate measurements and prevent overheating.
-
The ADD8504WRUZ has a SPI-compatible interface, which can be connected to a microcontroller or FPGA using a standard SPI bus. Ensure proper signal termination and use a level shifter if necessary to match the voltage levels.
-
The typical power consumption of the ADD8504WRUZ is around 10mA at 5V supply voltage, but it can vary depending on the operating frequency, input voltage, and other factors. Refer to the datasheet for more information on power consumption.
Trust Checks
Community Provided
System Verified
Community Approved
ADD8504WRUZ Overview

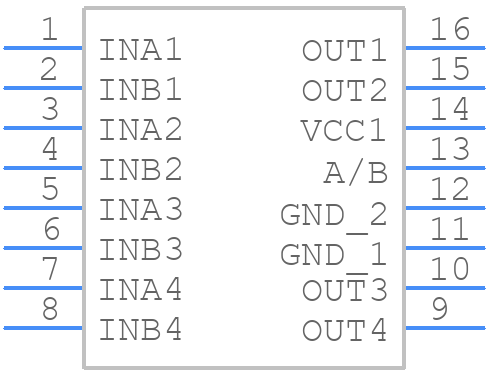

Use the download button to access the ADD8504WRUZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADD85,
or try a keyword search, such as Buffer Amplifiers
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
