ADDAC80-CCD-V footprint, schematic symbol and 3D model by Analog Devices

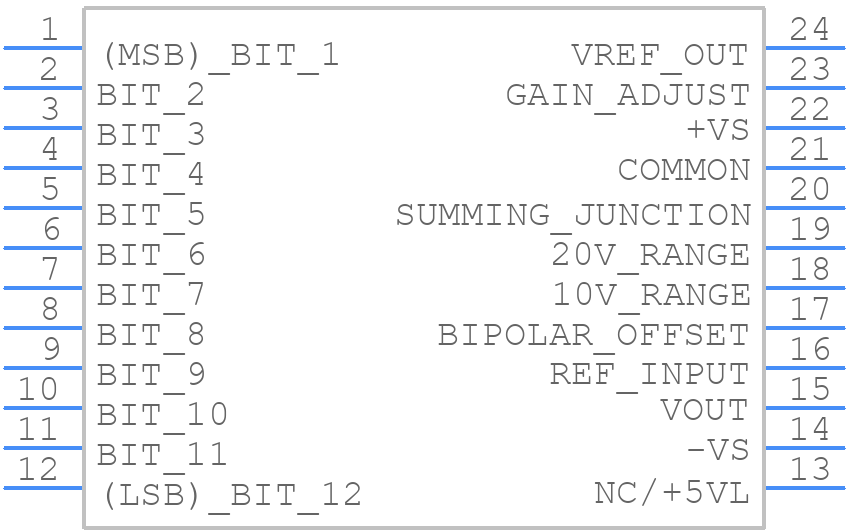

Symbol

click to zoom

PCB Footprints

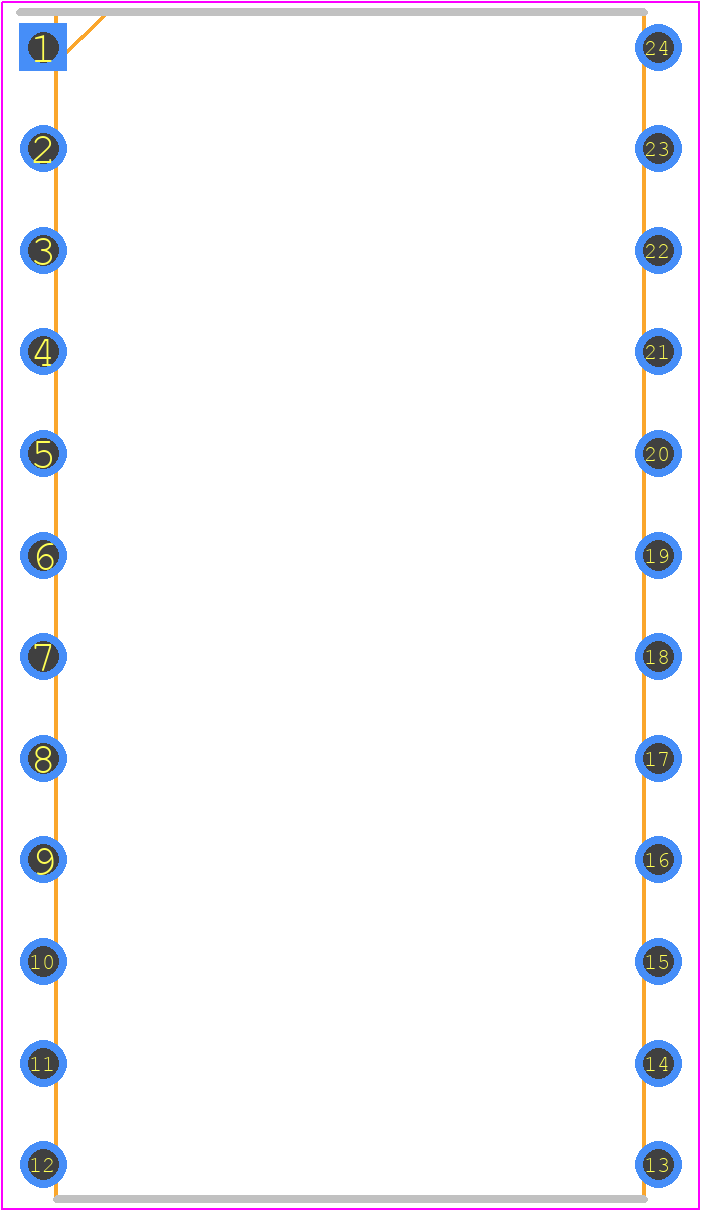

ADDAC80-CCD-V - Analog Devices PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - 24-Lead Side Brazed Ceramic DIP for Hybrid (DH-24A)

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ADDAC80-CCD-V
Part Number ADDAC80-CCD-V
Manufacturer Analog Devices
Pin Count 24
Part Category Integrated Circuit
Package Category Ceramic Dual-In-Line Packages
Footprint Name Ceramic Dual-In-Line Packages - 24-Lead Side Brazed Ceramic DIP for Hybrid (DH-24A)
Released Date Jun 15, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

ADDAC80-CCD-V Details

Manufacturer Part Number:
ADDAC80-CCD-V
Brand Name:
Analog Devices
Pbfree Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
DIP
Package Description:
SIDE BRAZED, CERAMIC, DIP-24
Pin Count:
24
HTS Code:
8542.39.00.40
Manufacturer:
Analog Devices Inc
YTEOL:
0
Analog Output Voltage-Max:
10 V
Analog Output Voltage-Min:
-10 V
Converter Type:
D/A CONVERTER
Input Bit Code:
BINARY CODED DECIMAL
Input Format:
PARALLEL, WORD
JESD-30 Code:
R-CDIP-T24
JESD-609 Code:
e0
Linearity Error-Max (EL):
0.0122%
Negative Supply Voltage-Nom:
-15 V
Number of Bits:
12
Number of Functions:
1
Number of Terminals:
24
Operating Temperature-Max:
70 °C
Package Body Material:
CERAMIC, METAL-SEALED COFIRED
Package Code:
DIP
Package Equivalence Code:
DIP24,.6
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Qualification Status:
Not Qualified
Seated Height-Max:
5.72 mm
Settling Time-Nom (tstl):
5 µs
Supply Voltage-Nom:
15 V
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
COMMERCIAL
Terminal Finish:
TIN LEAD
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Width:
15.24 mm

ADDAC80-CCD-V Frequently Asked Questions (FAQs)

The recommended power-up sequence is to apply VDD before VCC. This ensures that the internal voltage regulators are powered up correctly.
To optimize performance in high-temperature environments, ensure good thermal management by providing adequate heat sinking and airflow. Also, consider reducing the clock frequency and using a lower voltage supply to reduce power consumption and heat generation.
The maximum clock frequency that can be used with the ADDAC80-CCD-V is 20 MHz. However, the actual clock frequency may be limited by the specific application and the performance requirements.
The ADDAC80-CCD-V can be interfaced with a microcontroller using a serial interface such as SPI or I2C. The specific interface protocol will depend on the microcontroller and the application requirements.
The typical power consumption of the ADDAC80-CCD-V is around 100 mW, but this can vary depending on the clock frequency, voltage supply, and other factors.

Trust Checks

Community Provided

System Verified

Community Approved

ADDAC80-CCD-V Overview

Use the download button to access the ADDAC80-CCD-V schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like ADDAC, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
