ADE-1L+ - Mini-Circuits

Description: RF Mixer Level 3, SMT Double Balanced Mixer, RF/LO Freq 2 - 500 MHz

Download ADE-1L+ Model

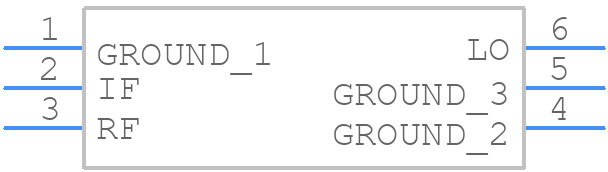

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADE-1L+ - Mini-Circuits PCB footprint - Other - Other - ADE-1L+-2
click to zoom
3D Models
ADE-1L+ - Mini-Circuits  - 3D model - Other - ADE-1L+-2
click to zoom

ADE-1L+ Details

  • Manufacturer Part Number:

    ADE-1L+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.47

  • Additional Feature:

    IMAGE REJECTION

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    8 dB

  • Input Power-Max (CW):

    17 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    500 MHz

  • Operating Frequency-Min:

    2 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    FL6,.2,100

  • RF/Microwave Device Type:

    DOUBLE BALANCED

  • Surface Mount:

    YES

  • VSWR-Max:

    2.25
