ADE-35MH+ - Mini-Circuits

Description: RF Mixer DBL BAL MIX / SURF MT / RoHS RF Mixer IC MMDS, PCS, ISM - 5MHz ~ 3.5GHz -

Download ADE-35MH+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

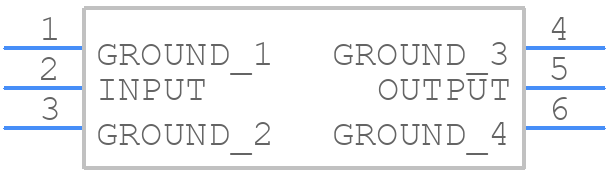

Symbol
ADE-35MH+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
ADE-35MH+ - Mini-Circuits PCB footprint - Other - Other - ADE-35MH+
click to zoom
3D Models
ADE-35MH+ - Mini-Circuits - 3D model - Other - ADE-35MH+
click to zoom

ADE-35MH+ Details

  • Manufacturer Part Number:

    ADE-35MH+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    10.5 dB

  • Input Power-Max (CW):

    23 dBm

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    3500 MHz

  • Operating Frequency-Min:

    5 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    DOUBLE BALANCED

  • Terminal Finish:

    TIN OVER NICKEL

  • VSWR-Max:

    2.4

ADE-35MH+ Frequently Asked Questions (FAQs)

  • A good grounding scheme is crucial for the ADE-35MH+. It's recommended to use a solid ground plane, and to connect the device's ground pins to the ground plane using vias. The input and output tracks should be kept as short as possible and shielded from other signals.
  • The ADE-35MH+ requires a bias voltage of 5V and a bias current of 10mA. Ensure that the bias voltage is well-regulated and noise-free, and that the bias current is limited to prevent overheating.
  • The ADE-35MH+ can handle input powers up to +10dBm. Exceeding this limit may cause compression, distortion, or even damage to the device.
  • Optimizing the amplifier's performance requires careful selection of the input and output matching networks, as well as the bias circuitry. Consult the application notes and seek guidance from experienced engineers or Mini-Circuits' technical support.
  • The ADE-35MH+ can dissipate up to 1.5W of power. Ensure good airflow around the device, and consider using a heat sink or thermal interface material to keep the junction temperature below 150°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADE-35MH+ Overview

Use the download button to access the ADE-35MH+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADE-3, or try a keyword search, such as RF/Microwave Mixers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
