Please enter a minimum 3 letters or numbers
Technical Content
Part Image

ADE-4+ - Mini-Circuits

Description: Level 7, SMT Double Balanced Mixer, RF/LO Freq 200 - 1000 MHz

Download ADE-4+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

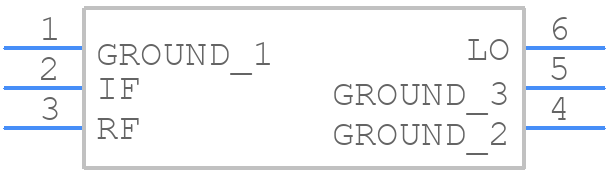

ADE-4+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
ADE-4+ - Mini-Circuits PCB footprint - Other - Other - ADE-4+-1
click to zoom
3D Models
ADE-4+ - Mini-Circuits - 3D model - Other - ADE-4+-1
click to zoom

ADE-4+ Details

  • Manufacturer Part Number:

    ADE-4+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, CASE CD542, 6 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.4

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    8.5 dB

  • Input Power-Max (CW):

    17 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    1000 MHz

  • Operating Frequency-Min:

    200 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    FL6,.2,100

  • RF/Microwave Device Type:

    DOUBLE BALANCED

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • VSWR-Max:

    2.56

ADE-4+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a microstrip layout with 50-ohm impedance. Proper grounding and decoupling are crucial for optimal performance.
  • The ADE-4+ requires a bias voltage of 5V and a bias current of 100mA. Ensure that the bias voltage is well-regulated and decoupled, and that the bias current is limited to prevent overheating.
  • The ADE-4+ can handle input powers up to +15dBm without damage. However, it's recommended to operate at input powers below +10dBm for optimal linearity and gain.
  • Common issues can be troubleshooted by checking the PCB layout, grounding, and decoupling. Ensure that the bias voltage and current are within specifications, and that the input and output impedances are properly matched.
  • Yes, the ADE-4+ can be used in a push-pull configuration to improve linearity and gain. However, this requires careful design and layout to ensure proper balancing and impedance matching.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADE-4+ Overview

Use the download button to access the ADE-4+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADE-4, or try a keyword search, such as RF/Microwave Mixers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.

Parts related to ADE-4+

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

ADE-4+ Alternates

Showing results

Image Part Number Model
Part Image ADE-4 Mini-Circuits

Double Balanced Mixer, 200MHz Min, 1000MHz Max, 8.5dB Conversion Loss-Max
