ADE0704 - TE Connectivity

ADE0704 Details

• Manufacturer Part Number:

  ADE0704

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.65

• Factory Lead Time:

  20 Weeks

• Manufacturer:

  TE Connectivity

• YTEOL:

  7.2

• Actuator Color:

  WHITE

• Actuator Length:

  0.039 inch

• Actuator Material:

  POLYAMIDE6T

• Actuator Type:

  SLIDE TYPE

• Additional Feature:

  APPROVAL: UL

• Body Breadth:

  7.5 mm

• Body Color:

  BLACK

• Body Height:

  3.5 mm

• Body Length or Diameter:

  19.8 mm

• Center Contact Material:

  COPPER ALLOY

• Center Contact Plating:

  GOLD OVER NICKEL

• Contact Current(AC)-Max:

  1 A

• Contact Current(DC)-Max:

  0.1 A

• Contact (DC) Max Rating R Load:

  0.1A@24VDC

• Contact Function:

  OFF-ON

• Contact Resistance:

  0.1 mΩ

• Contact Voltage(DC)-Max:

  24 V

• Dielectric Withstand Volts:

  300VAC V

• Electrical Life:

  1000 Cycle(s)

• End Contact Material:

  COPPER ALLOY

• End Contact Plating:

  GOLD OVER NICKEL

• Housing Material:

  POLYPHENYLENE SULPHIDE

• Insulation Resistance:

  1000000000 Ω

• Insulator Material:

  POLYPHENYLENE SULPHIDE

• Mounting Feature:

  THROUGH HOLE-RIGHT ANGLE

• Number of Positions:

  7

• Number of Switch Sections:

  7

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -30 °C

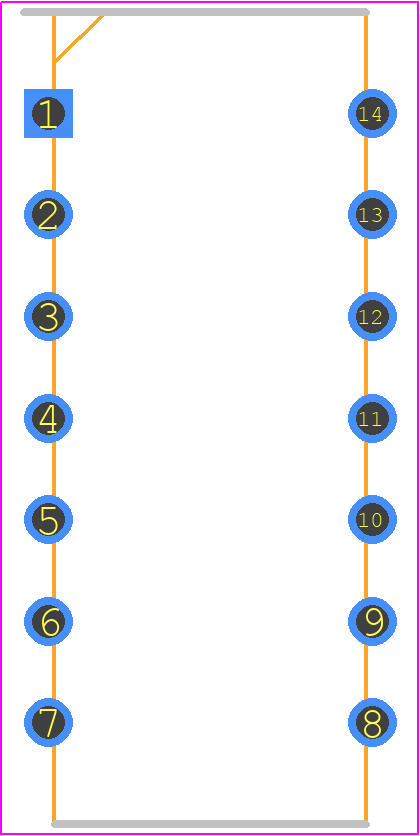

• PCB Hole Count:

  14

• Packing Method:

  TUBE

• Surface Mount:

  NO

• Switch Action:

  LATCHED

• Switch Function:

  SPST

• Switch Type:

  SLIDE DIP SWITCH

• Terminal Length:

  0.157 inch

• Terminal Material:

  COPPER ALLOY

• Termination Type:

  SOLDER
