ADE10S04 - TE Connectivity

Description: DIP & SIP Switches, Switch, Gold Flash, Black Housing, Polyphenylene Sulfide (PPS), Auto-Insertable, 10 Switch, -30 – 85 °C, DIP, Alcoswitch DIP

Download ADE10S04 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

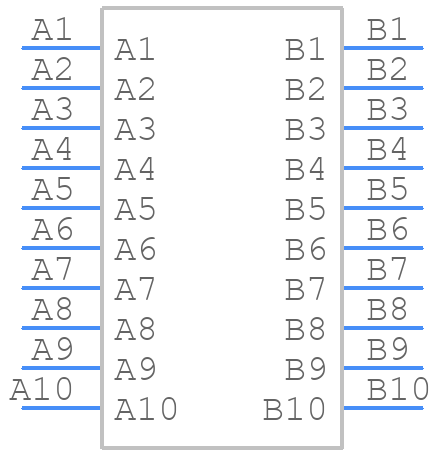

ADE10S04 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

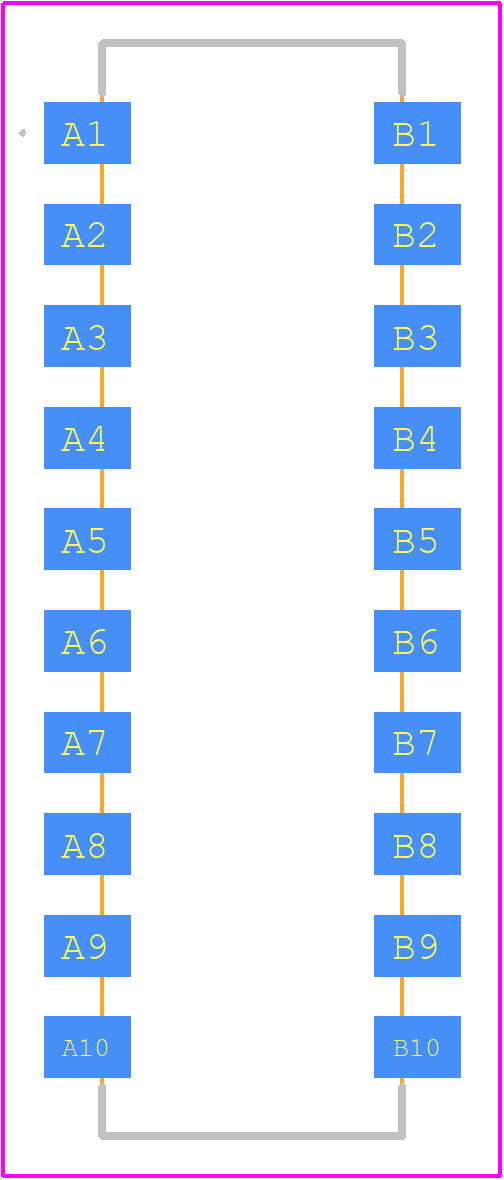

ADE10S04 - TE Connectivity PCB footprint - Other - Other - ADE10S04-4
click to zoom
3D Models
ADE10S04 - TE Connectivity - 3D model - Other - ADE10S04-4
click to zoom

ADE10S04 Details

  • Manufacturer Part Number:

    ADE10S04

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.65

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6.8

  • Actuator Color:

    WHITE

  • Actuator Length:

    0.039 inch

  • Actuator Material:

    POLYAMIDE6T

  • Actuator Type:

    SLIDE TYPE

  • Additional Feature:

    APPROVAL: UL

  • Body Breadth:

    7.5 mm

  • Body Color:

    BLACK

  • Body Height:

    3.5 mm

  • Body Length or Diameter:

    27.36 mm

  • Center Contact Material:

    COPPER ALLOY

  • Center Contact Plating:

    GOLD OVER NICKEL

  • Contact Current(AC)-Max:

    1 A

  • Contact Current(DC)-Max:

    0.1 A

  • Contact (DC) Max Rating R Load:

    0.1A@24VDC

  • Contact Function:

    OFF-ON

  • Contact Resistance:

    0.1 mΩ

  • Contact Voltage(DC)-Max:

    24 V

  • Dielectric Withstand Volts:

    300VAC V

  • Electrical Life:

    1000 Cycle(s)

  • End Contact Material:

    COPPER ALLOY

  • End Contact Plating:

    GOLD OVER NICKEL

  • Housing Material:

    POLYPHENYLENE SULPHIDE

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Material:

    POLYPHENYLENE SULPHIDE

  • JESD-609 Code:

    e4

  • Mounting Feature:

    PANEL MOUNT

  • Number of Positions:

    10

  • Number of Switch Sections:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Packing Method:

    TUBE

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    SPST

  • Switch Type:

    SLIDE DIP SWITCH

  • Terminal Finish:

    Gold Flash (Au)

  • Terminal Material:

    COPPER ALLOY

  • Termination Type:

    SOLDER

ADE10S04 Frequently Asked Questions (FAQs)

  • TE Connectivity provides a recommended PCB layout and land pattern in their application note AN-1043, which can be found on their website. It's essential to follow this layout to ensure proper thermal management and to prevent overheating.
  • To prevent whisker growth and ensure reliable connections, it's recommended to follow TE Connectivity's guidelines for tin whisker mitigation, which include using a hot air solder leveling (HASL) finish, applying a conformal coating, and avoiding the use of pure tin plating.
  • While the datasheet specifies an operating temperature range of -40°C to 125°C, it's essential to note that the device's performance and reliability may degrade at extreme temperatures. It's recommended to consult with TE Connectivity's application engineers for specific guidance on operating temperature ranges for your application.
  • Yes, the ADE10S04 is designed to withstand high-vibration environments. However, it's crucial to ensure that the device is properly mounted and secured to the PCB to prevent damage or dislodging. TE Connectivity provides guidelines for vibration testing and mounting in their application notes.
  • TE Connectivity provides a troubleshooting guide in their application note AN-1044, which covers common issues and their solutions. It's also recommended to consult with their application engineers for specific guidance on troubleshooting and debugging.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADE10S04 Overview

Use the download button to access the ADE10S04 schematic symbol, PCB footprint, and 3D model.
