ADE124 - Panasonic

Description: RELAY GEN PURPOSE SPST 10A 24V

Download ADE124 Model

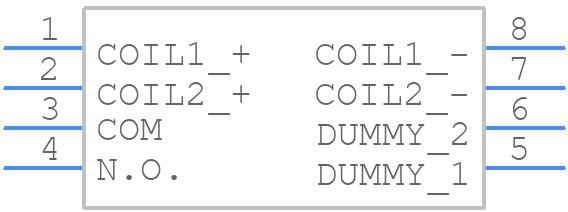

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

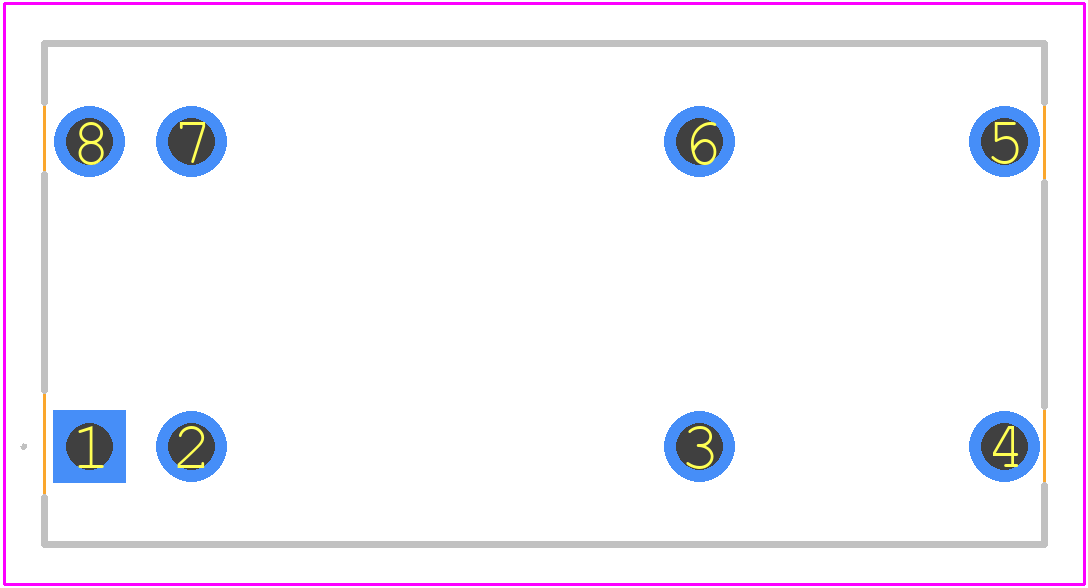

PCB Footprints
ADE124 - Panasonic PCB footprint - Other - Other - DE_2_Coil_Latching
click to zoom
3D Models
ADE124 - Panasonic  - 3D model - Other - DE_2_Coil_Latching
click to zoom

ADE124 Details

  • Manufacturer Part Number:

    ADE124

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7

  • Relay Type:

    POWER/SIGNAL RELAY
