ADE224 - Panasonic

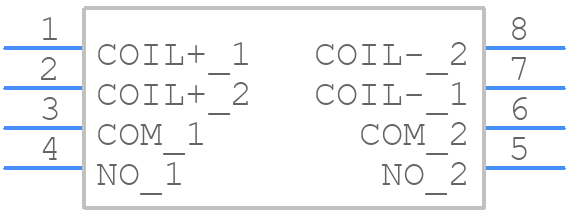

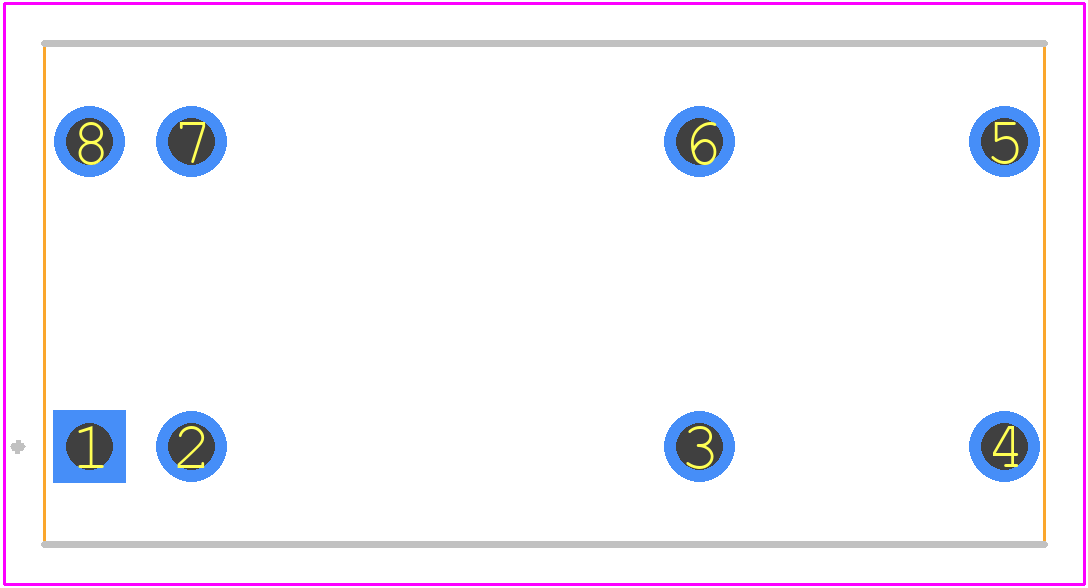

ADE224 Details

• Manufacturer Part Number:

  ADE224

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Czechia

• ECCN Code:

  EAR99

• HTS Code:

  8536.41.00.20

• Manufacturer:

  Panasonic Electronic Components

• YTEOL:

  7.45

• Body Breadth:

  12.5 mm

• Body Height:

  12.5 mm

• Body Length or Diameter:

  25 mm

• Coil Current(DC)-Max:

  0.008 A

• Coil Operate Voltage(DC):

  16.8 V

• Coil Power:

  200 mW

• Coil Release Voltage(DC):

  16.8 V

• Coil Resistance:

  2880 Ω

• Coil Voltage(DC)-Max:

  31.2 V

• Coil Voltage-Nom:

  24 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Power Rating R Load:

  2000VA@250VAC

• Contact (AC) Max Rating R Load:

  8A@250VAC

• Contact Current(AC)-Max:

  8 A

• Contact Current(DC)-Max:

  8 A

• Contact (DC) Max Power Rating R Load:

  240W@30VDC

• Contact (DC) Max Rating R Load:

  8A@30VDC

• Contact Resistance:

  30 mΩ

• Contact Voltage(AC)-Max:

  250 V

• Contact Voltage(DC)-Max:

  30 V

• Contact/Output Supply Type:

  AC/DC

• Electrical Life:

  100000 Cycle(s)

• End Contact Material:

  Silver Alloy

• Input Switching Control Type:

  Random

• Insulation Resistance:

  1000000000 Ω

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Terminals:

  6

• Operate Time:

  10 ms

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -40 °C

• Packing Method:

  TUBE

• Physical Dimension:

  25mm x 12.5mm x 12.5mm

• Reference Standard:

  CSA; UL; VDE

• Relay Action:

  LATCHED

• Relay Form:

  2 FORM A

• Relay Function:

  DPST

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  5 ms

• Surface Mount:

  NO

• Terminal Length:

  0.003500127000254001 inch

• Termination Type:

  SOLDER
