A good PCB layout for the ADE304 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power source. Additionally, ensure that the input and output traces are short and well-shielded to minimize noise and electromagnetic interference.
The ADE304 has a maximum junction temperature of 150°C. To manage thermal issues, ensure good airflow around the device, use a heat sink if necessary, and avoid high ambient temperatures. You can also consider using thermal interface materials to improve heat dissipation.
Although the datasheet specifies a minimum input voltage of 2.7V, it's recommended to operate the ADE304 with a minimum input voltage of 3.0V to ensure stable operation and accurate measurements.
Calibration of the ADE304 involves adjusting the internal offset and gain registers. You can use the device's built-in calibration mode or perform external calibration using a precision voltage source and a multimeter. Refer to the application notes and datasheet for detailed calibration procedures.
The ADE304 has a maximum sampling rate of 1 kHz, but this can be limited by the system's clock frequency and the device's conversion time. Ensure that your system design takes into account the sampling rate requirements and the device's conversion time to avoid aliasing and other issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADE304 Overview

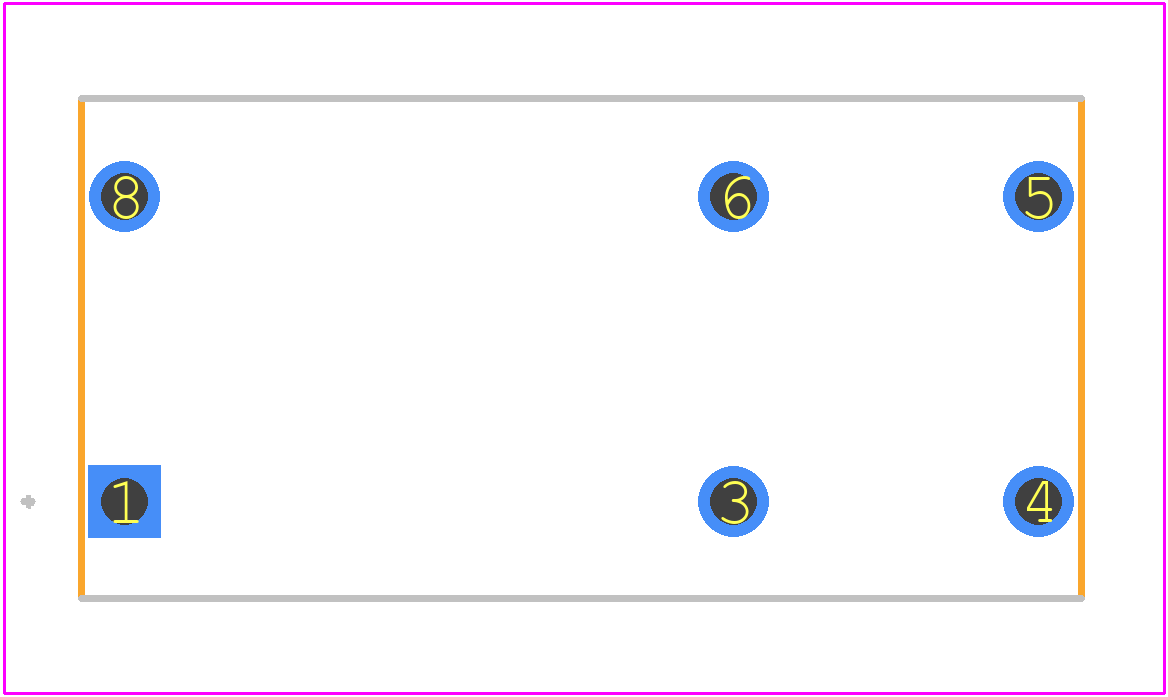

Use the download button to access the ADE304 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADE30,
or try a keyword search, such as Power/Signal Relays
