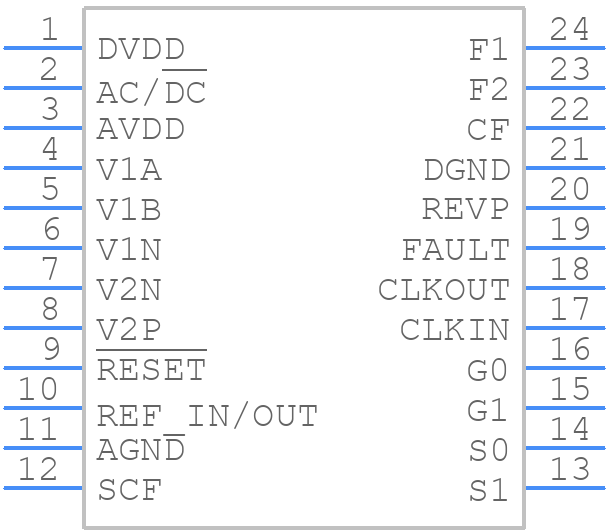

ADE7751ARSRL - Analog Devices

ADE7751ARSRL Details

• Manufacturer Part Number:

  ADE7751ARSRL

• Source Url Status Check Date:

  2013-05-01 14:56:35.232

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SSOP

• Package Description:

  SSOP-24

• Pin Count:

  24

• Manufacturer Package Code:

  RS-24

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0

• Analog IC - Other Type:

  ANALOG CIRCUIT

• JESD-30 Code:

  R-PDSO-G24

• JESD-609 Code:

  e0

• Length:

  8.2 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  24

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Equivalence Code:

  SSOP24,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  240

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2 mm

• Supply Voltage-Max (Vsup):

  5.25 V

• Supply Voltage-Min (Vsup):

  4.75 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Width:

  5.3 mm
